Vis alle mål +

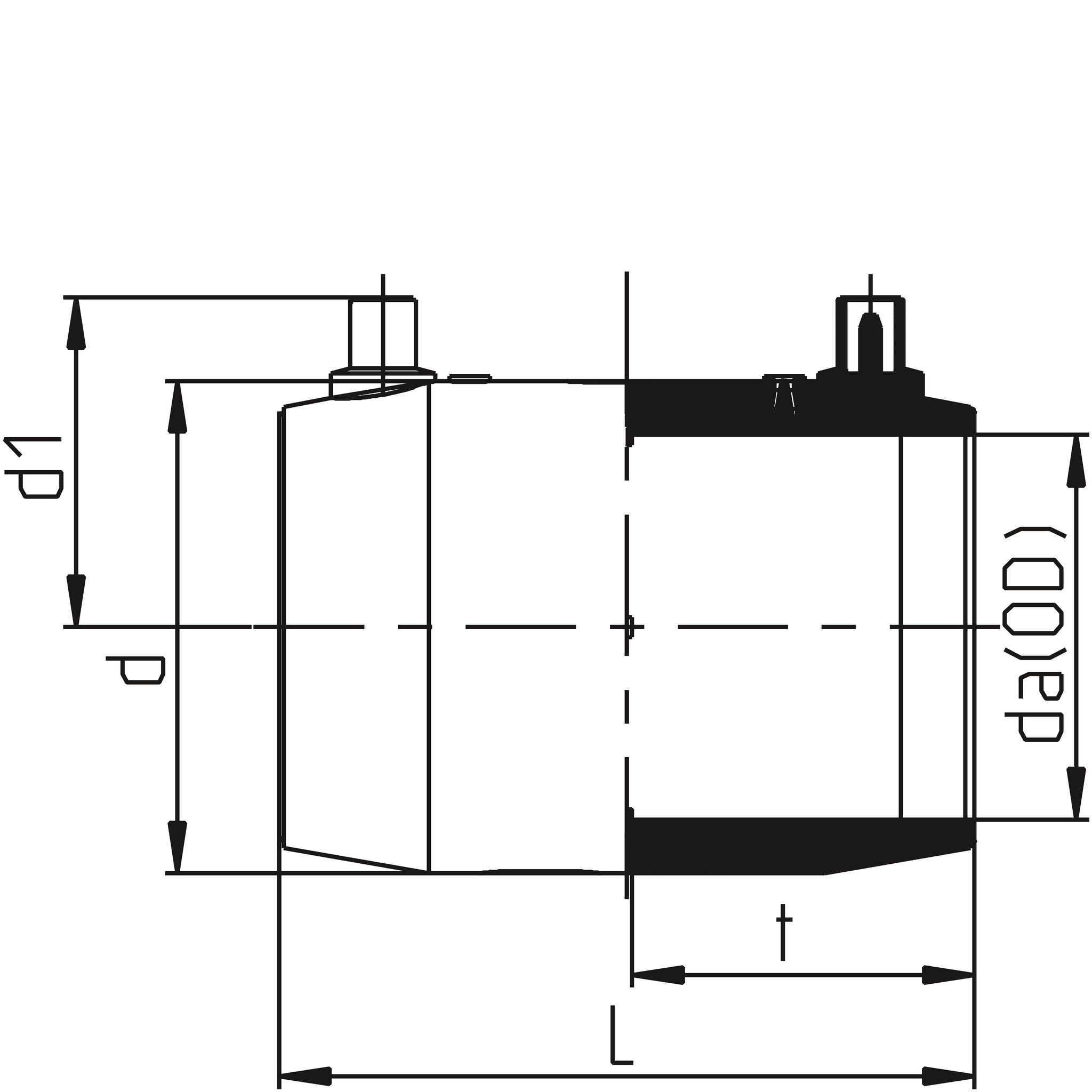

| Artikel nummer | VVS-nummer | da(OD) | L | d | d1 | t | Filer |
|---|---|---|---|---|---|---|---|
| MEM-HP-020 | 20 | 75 | 31,2 | 35 | 36,2 | CAD/Step | |
| MEM-HP-025 | 25 | 81 | 36.2 | 38 | 39.3 | CAD/Step | |
| MEM-HP-032 | 32 | 89 | 44 | 42 | 44 | CAD/Step | |
| MEM-HP-040 | 40 | 100 | 55 | 44.5 | 48.4 | CAD/Step | |
| MEM-HP-050 | 50 | 112 | 65 | 50 | 55 | CAD/Step | |
| MEM-HP-063 | 63 | 126 | 80 | 56.5 | 62 | CAD/Step | |
| MEM-HP-075 | 75 | 141 | 97 | 65.5 | 70 | CAD/Step | |
| MEM-HP-090 | 90 | 142 | 114 | 73 | 70 | CAD/Step | |
| MEM-HP-110 | 110 | 153 | 140 | 83 | 75 | CAD/Step | |
| MEM-HP-125 | 125 | 169.5 | 155 | 91 | 83.5 | CAD/Step | |
| MEM-HP-140 | 140 | 181 | 180 | 98 | 90 | CAD/Step | |
| MEM-HP-160 | 160 | 181 | 200 | 108.5 | 90 | CAD/Step | |
| MEM-HP-180 | 180 | 199.5 | 221 | 119 | 97.5 | ||
| MEM-HP-200 | 200 | 217 | 246 | 129 | 106.5 | CAD/Step | |
| MEM-HP-225 | 225 | 233 | 277 | 144 | 115 | CAD/Step | |
| MEM-HP-250 | 250 | 242 | 310 | 159 | 120 | CAD/Step | |
| MEM-HP-280 | 280 | 254 | 349 | 180 | 125 | ||
| MEM-HP-315 | 315 | 262 | 393 | 201 | 130 | CAD/Step | |
| MEM-HP-355 | 355 | 282 | 445 | 225 | 140 | CAD/Step |
