S-JEL17

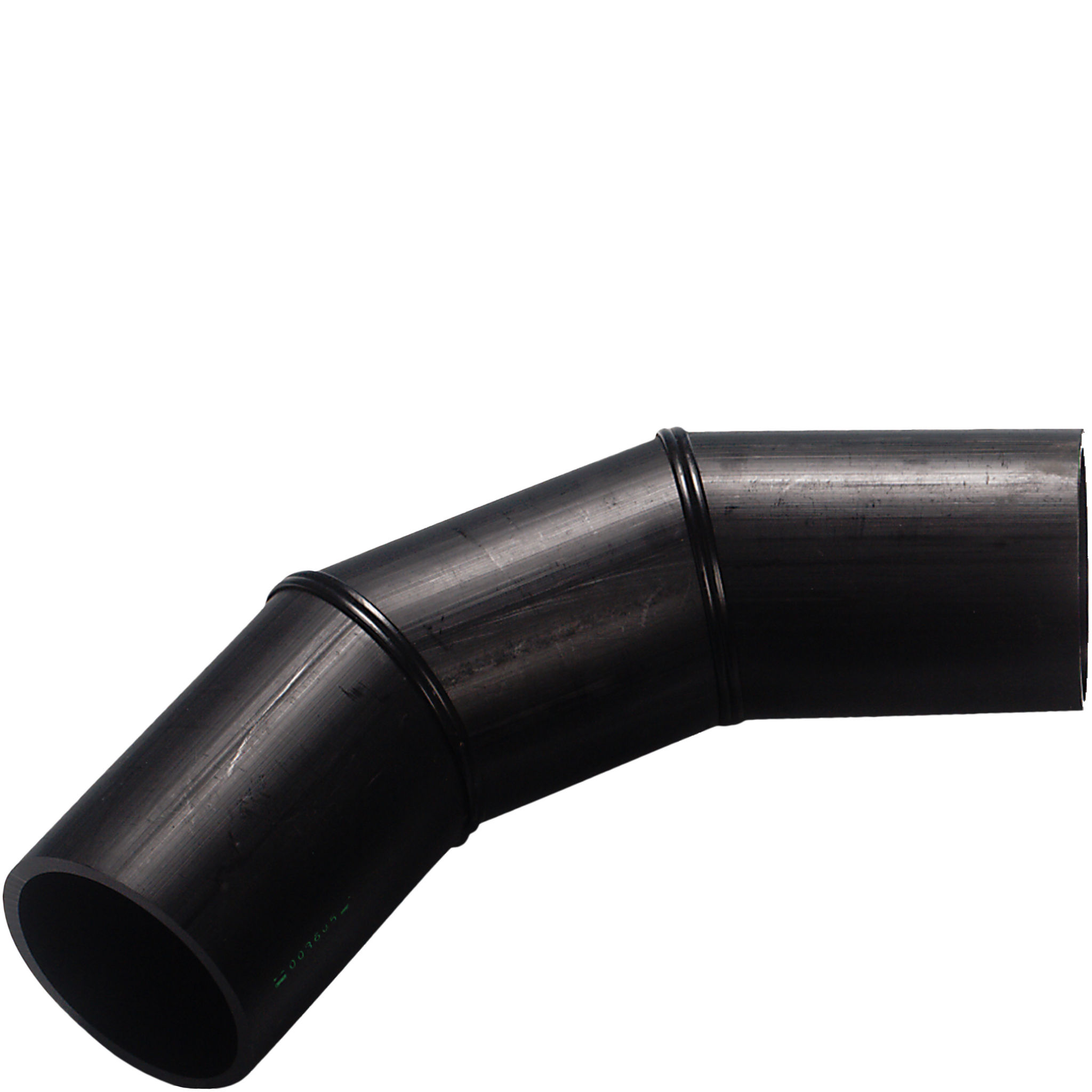

PE100 Bøjning 60° SDR17 PN8

  • PE100 Bøjning 60°
  • Lange ender
  • Segmentsvejset
  • SDR17: Vand PN 8 Gas PN4,8
Vis alle mål +

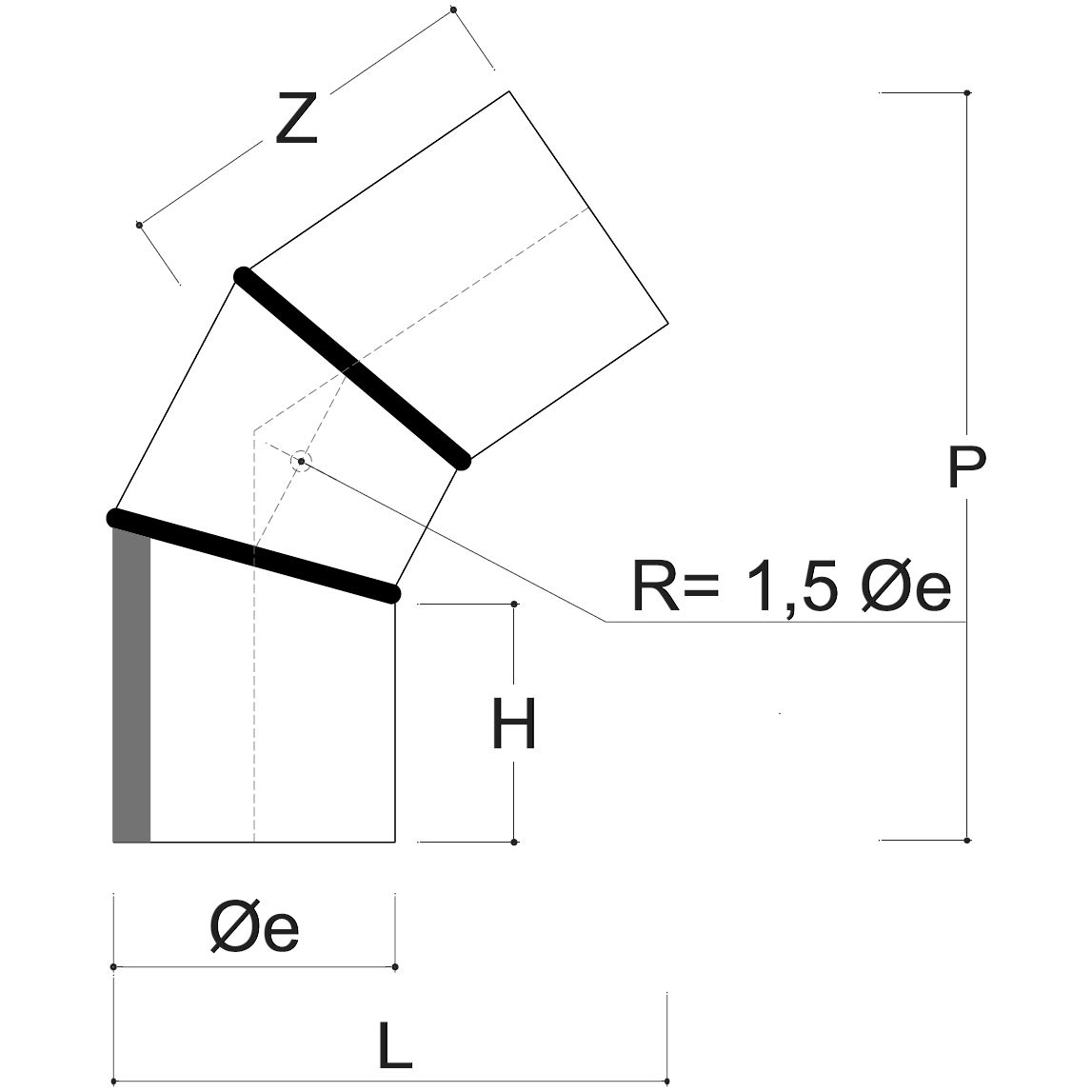

Artikel nummer VVS-nummer dSDRPZHLFiler
S-JEL17-110 110SDR17289146100198
S-JEL17-125 125SDR17391203150251
S-JEL17-140 140SDR17407209150268
S-JEL17-160 160SDR17428217150291
S-JEL17-180 180SDR17535276200349
S-JEL17-200 200SDR17556284200372
S-JEL17-225 225SDR17584295200401
S-JEL17-250 250SDR17610305200430
S-JEL17-280 280SDR17634313200461
S-JEL17-315 315SDR17853434300576
S-JEL17-355 355SDR17893449300621
S-JEL17-400 400SDR17944470300674
S-JEL17-450 450SDR17996490300731
S-JEL17-500 500SDR171048510300788
S-JEL17-560 560SDR171197585350892
S-JEL17-630 630SDR171273615350973
Datablad
