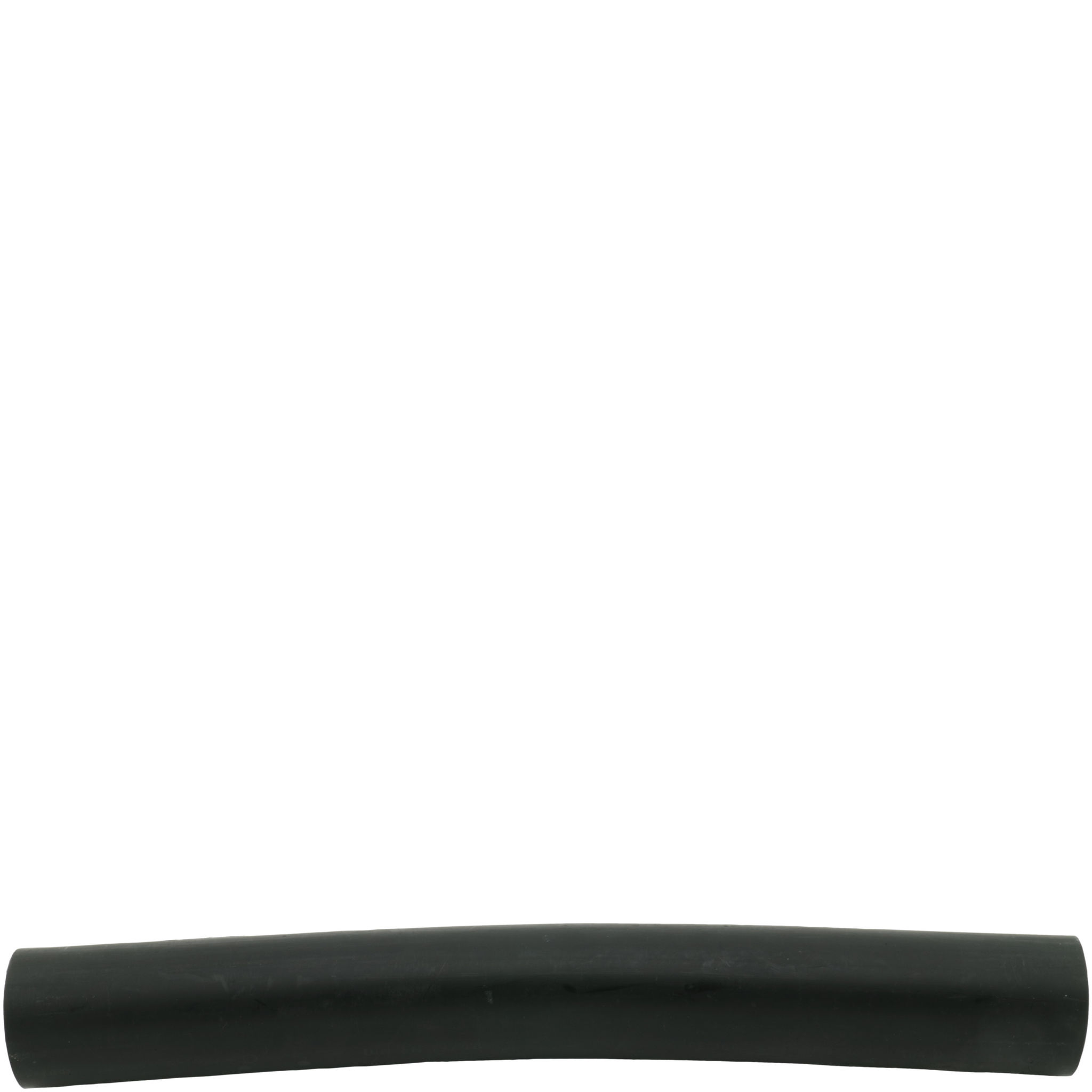

Name: S11E17
SKU: 55955

Vis alle mål +

Artikel nummer	VVS-nummer	da(OD)	SDR	Z	L	R	S	Filer
S11E17-050	77746050	50	SDR17	170	115	75	3
S11E17-063	77746063	63	SDR17	180	120	95	3.8
S11E17-075	77746075	75	SDR17	200	130	113	4.5
S11E17-RC-090	77746090	90	SDR17	340	150	135	5.4	CAD/Step
S11E17-RC-110	77746110	110	SDR17	330	150	165	6.6	CAD/Step
S11E17-RC-125	77746125	125	SDR17	380	150	188	7.4	CAD/Step
S11E17-RC-140	77746140	140	SDR17	395	150	210	8.3	CAD/Step
S11E17-RC-160	77746160	160	SDR17	415	150	480	9.5	CAD/Step
S11E17-RC-180	77746180	180	SDR17	450	150	270	10.7	CAD/Step
S11E17-RC-200	77746200	200	SDR17	480	150	300	11.9	CAD/Step
S11E17-RC-225	77746225	225	SDR17	510	150	338	13.4	CAD/Step
S11E17-RC-250	77746250	250	SDR17	540	250	375	14.8	CAD/Step
S11E17-RC-280	77746258	280	SDR17	450	250	420	16.6	CAD/Step
S11E17-RC-315	77746315	315	SDR17	500	300	496	18.7	CAD/Step
S11E17-RC-355	77746355	355	SDR17	590	300	560	21.1	CAD/Step
S11E17-RC-400	77746400	400	SDR17	650	300	637	23.7	CAD/Step
S11E17-RC-450	77746450	450	SDR17	700	300	711	26.7	CAD/Step
S11E17-RC-500	77746500	500	SDR17	750	350	783	29.7	CAD/Step
S11E17-RC-560	77746560	560	SDR17	800	350	877	33.2	CAD/Step
S11E17-RC-630	77746630	630	SDR17	850	350	955	37.4	CAD/Step

Datablad

Produktblad

S11E17
