Vis alle mål +

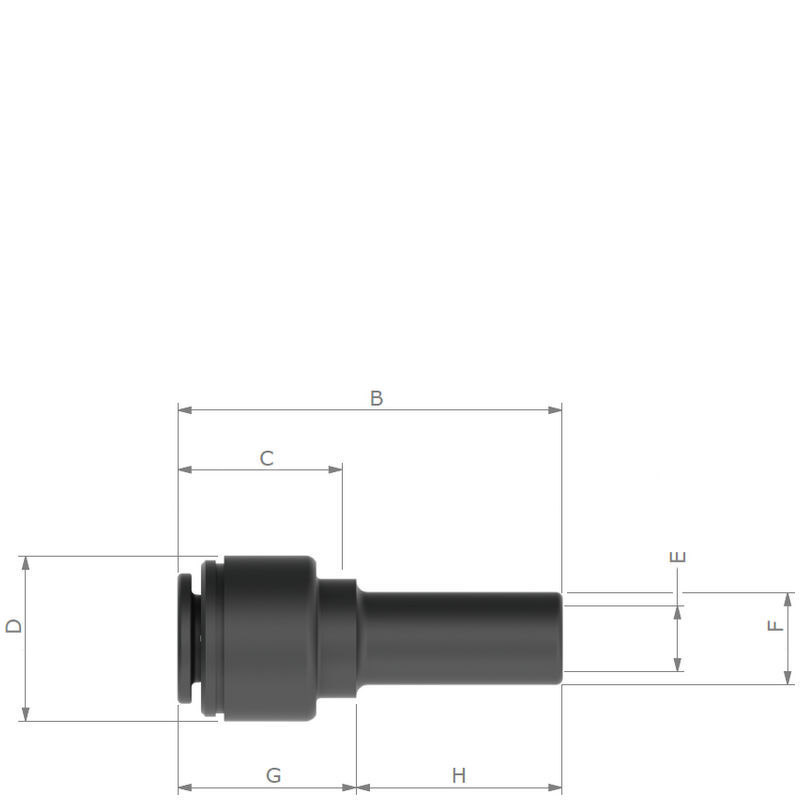

| Artikel nummer | VVS-nummer | dxd1 | Slangetilslutning | B | C | D | E | F | G | H | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PM060504E | 5×4 | 4 | 34.6 | 14.3 | 13 | 2.5 | 5 | 18.1 | 16.5 | ||
| PM060604E | 6×4 | 4 | 36.3 | 14.3 | 13 | 2.5 | 6 | 18.3 | 18.3 | ||
| PM060605E | 6×5 | 5 | 36.1 | 14.3 | 13 | 3.4 | 6 | 18.1 | 18 | ||
| PM060804E | 8×4 | 4 | 37.2 | 14.3 | 13 | 3.5 | 8 | 18.1 | 19.1 | ||
| PM060805E | 8×5 | 5 | 37.2 | 14.3 | 13 | 3.4 | 8 | 18.1 | 19.1 | ||
| PM060806E | 8×6 | 6 | 37.4 | 15.7 | 15 | 4.8 | 8 | 18.3 | 19.1 | ||
| PM061006E | 10×6 | 6 | 40.5 | 15.7 | 15 | 4.8 | 10 | 18.3 | 22.2 | ||
| PM061008E | 10×8 | 8 | 40.4 | 16.7 | 17.8 | 6.3 | 10 | 18.2 | 22.2 | ||
| PM061208E | 12×8 | 8 | 40.5 | 16.7 | 17.8 | 6.3 | 12 | 18.2 | 27.5 | ||
| PM061210E | 12×10 | 10 | 50 | 19.7 | 19.8 | 7.6 | 12 | 22.5 | 27.5 | ||
| PM061510E | 15×10 | 10 | 55.3 | 19.7 | 19.8 | 7.6 | 15 | 22.6 | 32.7 | ||
| PM061512E | 15×12 | 12 | 60.2 | 25.9 | 23 | 9.1 | 15 | 27.7 | 32.5 | ||
| PM061815E | 18x15 | 15 | 70.5 | 28.7 | 26.7 | 12.1 | 18 | 34.4 | 36.1 | ||
| PM062215E | 22×15 | 15 | 69.6 | 27.8 | 27 | 12.1 | 22 | 33.5 | 36.5 | ||
| PM062218E | 22x18 | 18 | 71.6 | 31 | 31.1 | 16 | 22 | 35.5 | 36.1 | ||
| PM062815E | 28x15 | 15 | |||||||||
| PM062822E | 28x22 | 22 |
