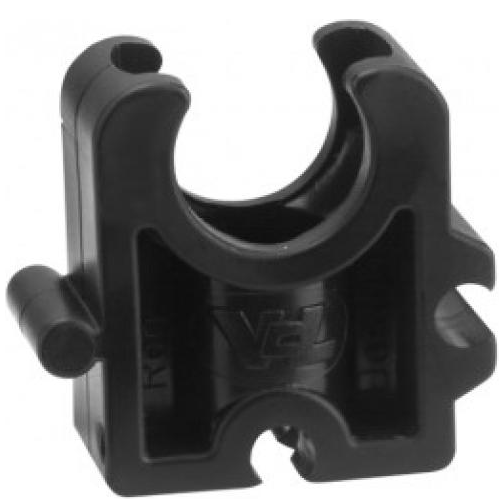

PP Rørbærer

Vis alle mål +

Artikel nummer	VVS-nummer	d1	d2	d3	Z1	Z2	B	E	Type	Filer
ZIP010		10	8.3	4.5	11	13.5	20	12	A	CAD/Step
ZIP012	061906512	12	8.5	4.5	11	13.5	21	12	A	CAD/Step
ZIP016		16	10.5	5.5	14	1635	23	16	B	CAD/Step
ZIP020		20	10.5	5.5	16.5	19	25	16	B	CAD/Step
ZIP025		25	10.5	5.5	19	21.5	27.5	16	B	CAD/Step
ZIP032		32	10.5	5.5	24	26.5	31	16	B	CAD/Step
ZIP040		40	14	6.5	33.5	33.5	35	22	C	CAD/Step
ZIP050		50	14	6.5	37	37	40	22	C	CAD/Step
ZIP063		63	17	8.5	44.5	44.5	51.5	25	C	CAD/Step
ZIP075		75	17	8.5	52	52	57.5	25	C	CAD/Step
ZIP090		90	17	8.5	64.5	64.5	65	28	C	CAD/Step
ZIP110		110	17	8.5	78	78	75	28	C	CAD/Step
ZIP125		125	17	8.5	88	88	90	31.5	C	CAD/Step
ZIP140		140	17	8.5	97	97	110	31.5	C	CAD/Step
ZIP160		160	17	8.5	109	109	107.5	31.5	C	CAD/Step

Datablad
