QBM17

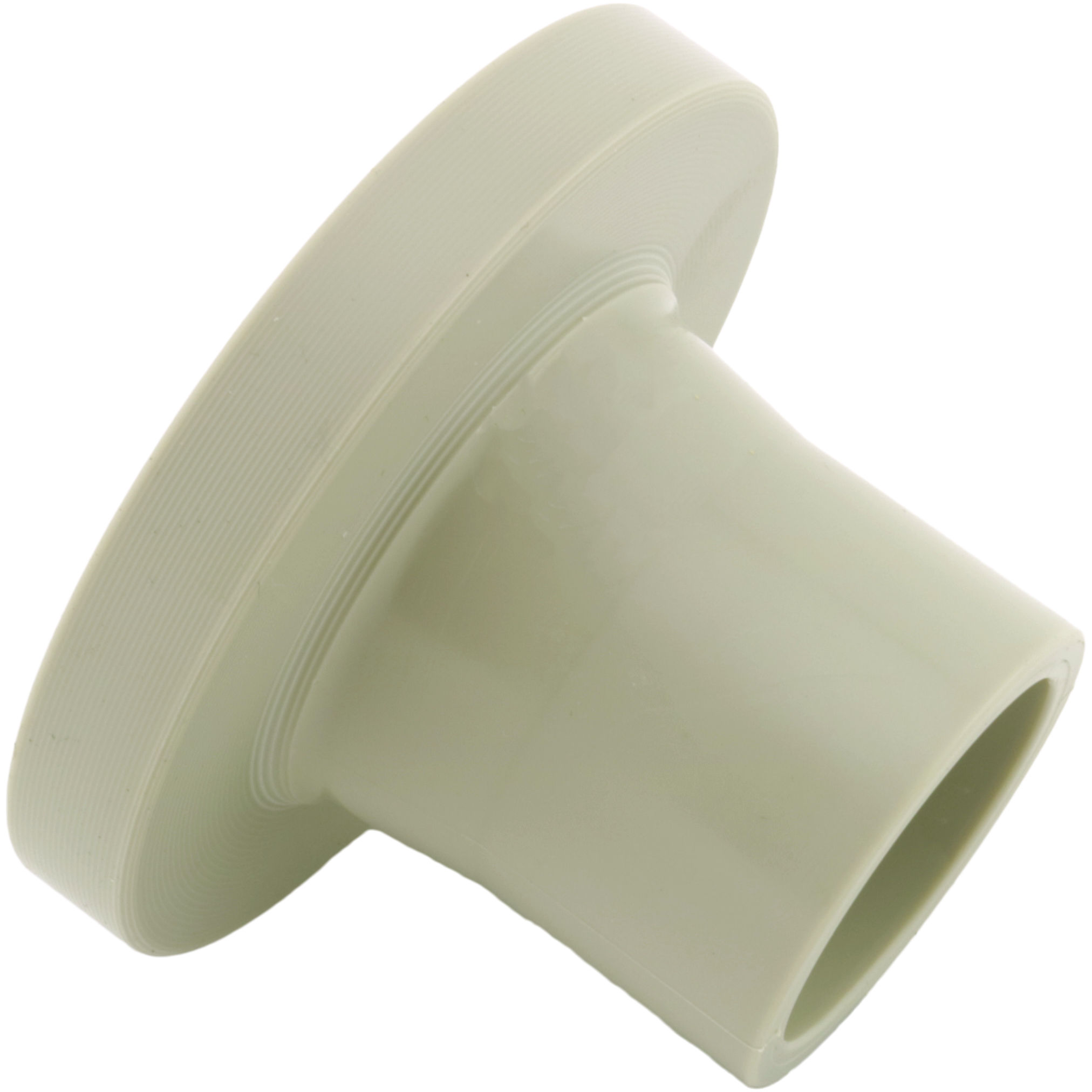

PP Flangebøsning SDR17 PN6

  • PP Flange
  • Til stuksvejsning
  • SDR17 PN6
Vis alle mål +

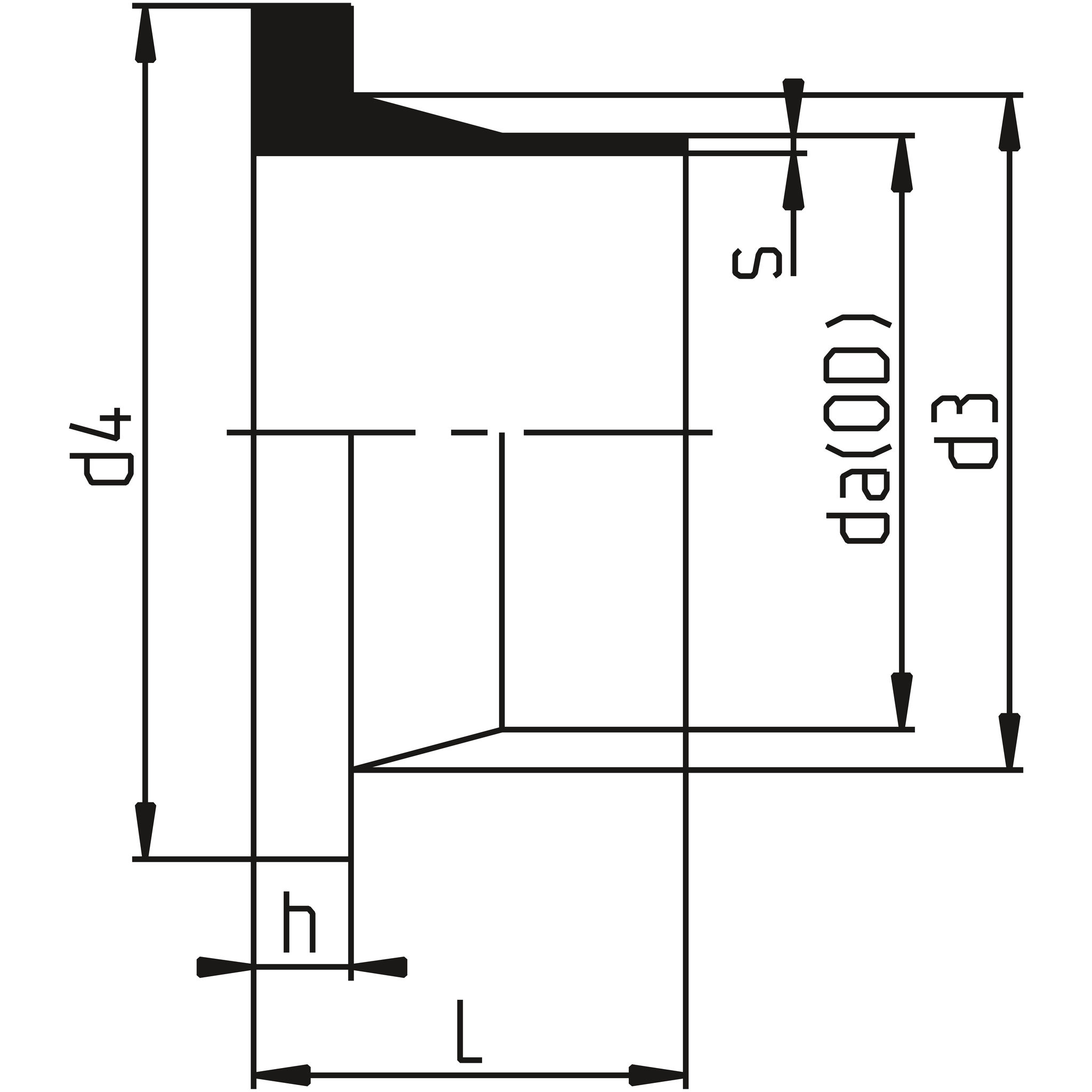

Artikel nummer VVS-nummer da(OD)SDRsLd3d4hFiler
QBM17-063 63SDR173.8507510214 CAD/Step
QBM17-075 75SDR174.5508912216 CAD/Step
QBM17-090 90SDR176.68210513817 CAD/Step
QBM17-110 110SDR177.48012515818 CAD/Step
QBM17-125 125SDR178.38413215818 CAD/Step
QBM17-140 140SDR179.59215518818 CAD/Step
QBM17-160 160SDR1710.79217521218 CAD/Step
QBM17-180 180SDR1711.99218021220 CAD/Step
QBM17-200 200SDR1713.411023226824 CAD/Step
QBM17-225 225SDR1714.811323526824 CAD/Step
QBM17-250 250SDR1716.613228532025 CAD/Step
QBM17-315 315SDR1718.713633537025 CAD/Step
QBM17-355 355SDR1721.115037343030 CAD/Step
QBM17-400 400SDR1723.715542748233 CAD/Step
QBM17-450 450SDR1726.717051458546 CAD/Step
QBM17-500 500SDR1729.717553058546 CAD/Step
QBM17-560 560SDR1733.212061568550 CAD/Step
QBM17-630 630SDR1737.418064268550 CAD/Step
Datablad
