S-HEL17

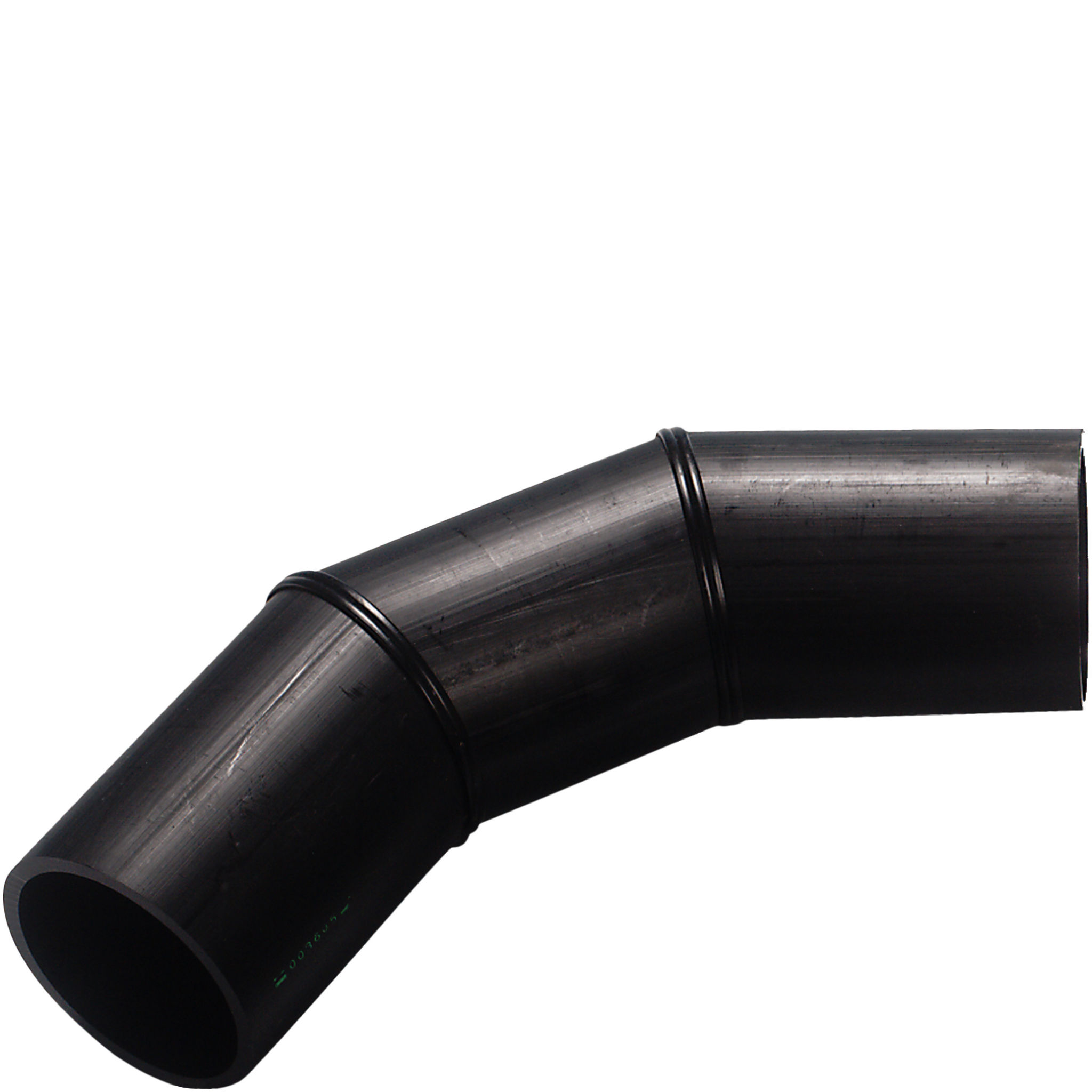

PE100 Bøjning 45° SDR17 PN8

  • PE100 Bøjning 45°
  • Lange ender
  • Segmentsvejset
  • SDR17: Vand PN 8 Gas PN4,8
Vis alle mål +

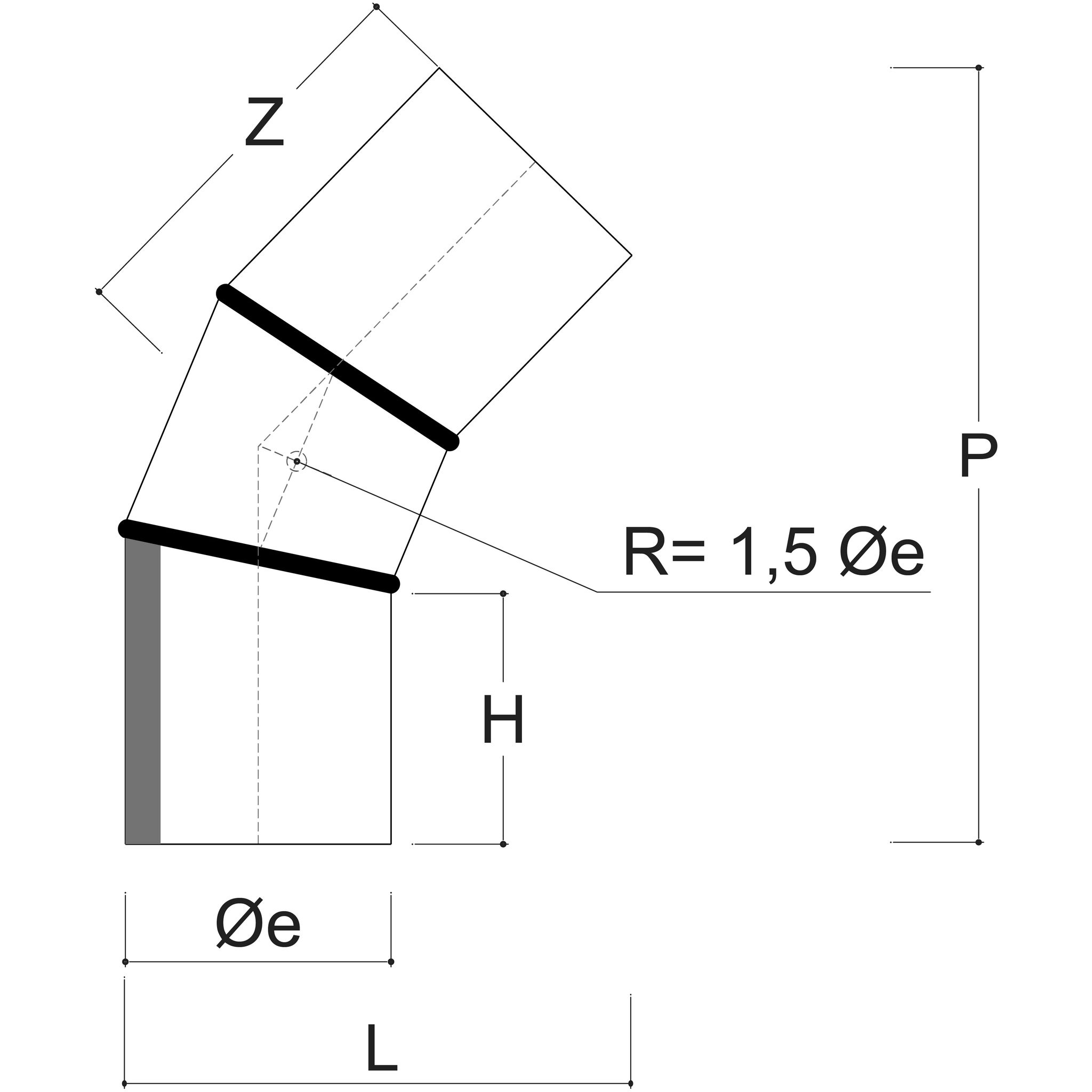

Artikel nummer VVS-nummer dSDRPHZLFiler
S-HEL17-110 110SDR17289100146198
S-HEL17-125 125SDR17391150203251
S-HEL17-140 140SDR17407150209268
S-HEL17-160 160SDR17428150217291
S-HEL17-180 180SDR17535200276349
S-HEL17-200 200SDR17556200284372
S-HEL17-225 225SDR17584200295401
S-HEL17-250 250SDR17610200305430
S-HEL17-280 280SDR17634200313461
S-HEL17-315 315SDR17853300434576
S-HEL17-355 355SDR17893300449621
S-HEL17-400 400SDR17944300470674
S-HEL17-450 450SDR17996300490731
S-HEL17-500 500SDR171048300510788
S-HEL17-560 560SDR171197350585892
S-HEL17-630 630SDR171273350615973
Datablad
