S-KDE17

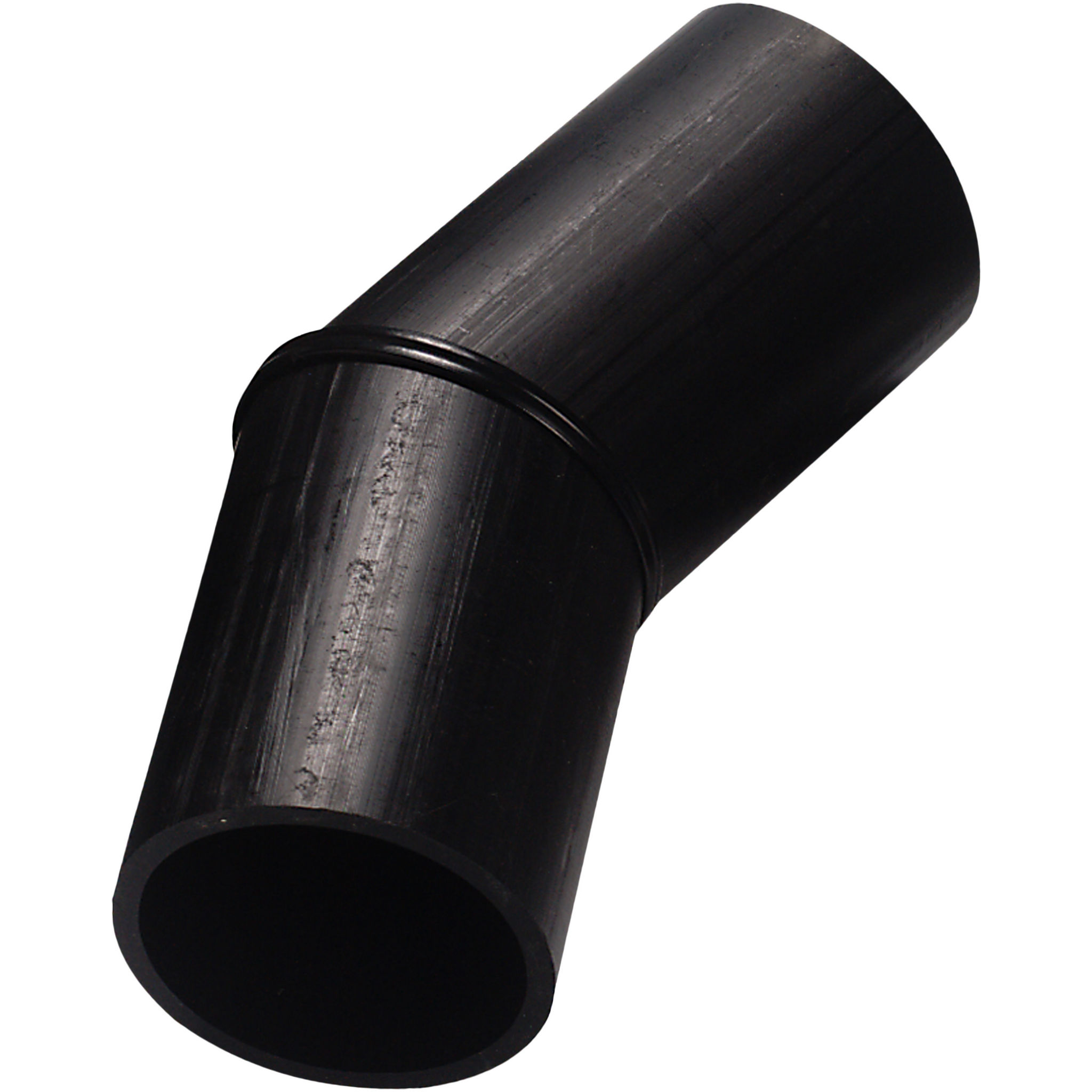

PE100 Bøjning 30° SDR17 PN8

  • PE100 Bøjning 30°
  • Lange ender
  • Segmentsvejset
  • SDR17: Vand PN 8 Gas PN4,8

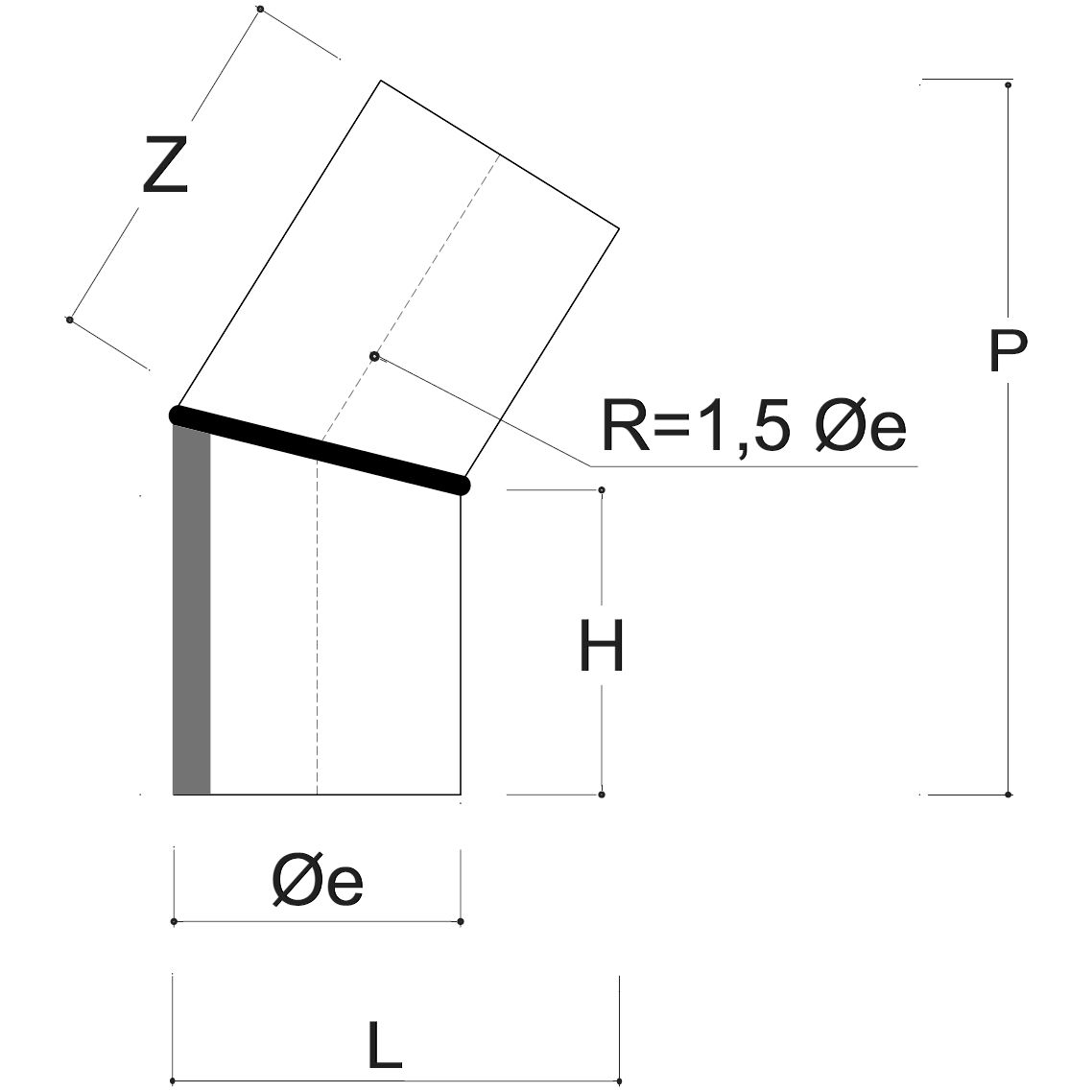

Vis alle mål +
Artikel nummer VVS-nummer dSDRPHZLFiler
S-KDE17-090 90SDR17232100112140
S-KDE17-110 110SDR17243100115161
S-KDE17-125 125SDR17343150167201
S-KDE17-140 140SDR17351150169216
S-KDE17-160 160SDR17360150171235
S-KDE17-180 180SDR17463200224280
S-KDE17-200 200SDR17474200227301
S-KDE17-225 225SDR17486200230325
S-KDE17-250 250SDR17498200233350
S-KDE17-280 280SDR17513200237380
S-KDE17-315 315SDR17717300342465
S-KDE17-355 355SDR17737300347505
S-KDE17-400 400SDR17761300354551
S-KDE17-450 450SDR17785300360600
S-KDE17-500 500SDR17810300367651
S-KDE17-560 560SDR17934350425735
S-KDE17-630 630SDR17968350434805
Datablad
Produktblad
