SAN-PP

PPSanitærkobling SDR11 PN10

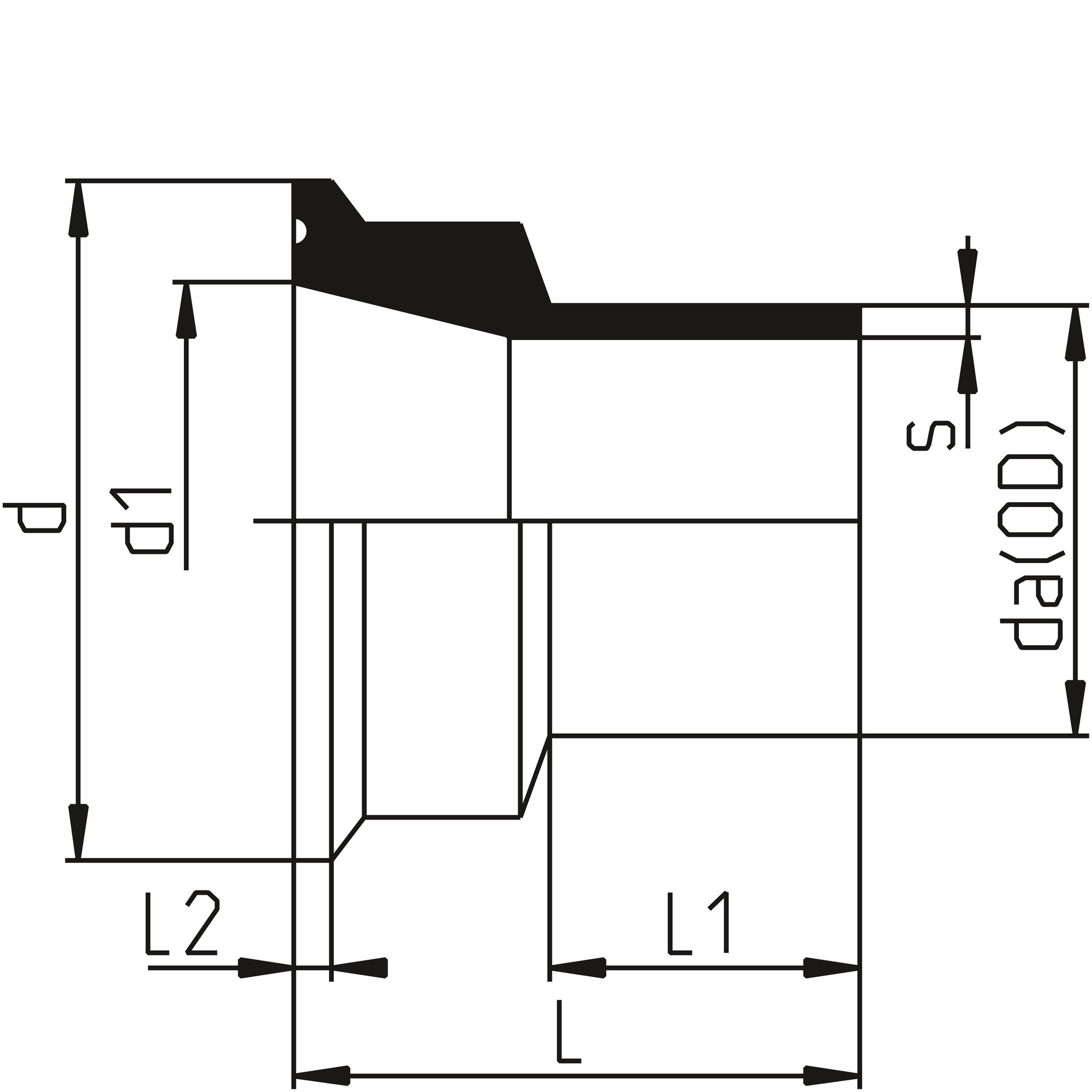

Vis alle mål +

Artikel nummer	VVS-nummer	da(OD)	L	L1	L2	d	d1	s	Filer
SAN-PP-020	065548020	20	42	23	2.8	50.5	18.1	1.9	CAD/Step
SAN-PP-025	065548025	25	42	23	2.8	50.5	22.4	2.3	CAD/Step
SAN-PP-032	065548032	32	42	23	2.8	50.5	29.7	2.9	CAD/Step
SAN-PP-040	065548040	40	42	23	2.8	64	38.4	3.7	CAD/Step
SAN-PP-050	065548050	50	42	23	2.8	64	44.2	4.6	CAD/Step
SAN-PP-063	065548063	63	42	23	2.8	77.5	60.3	5.8	CAD/Step

Datablad
