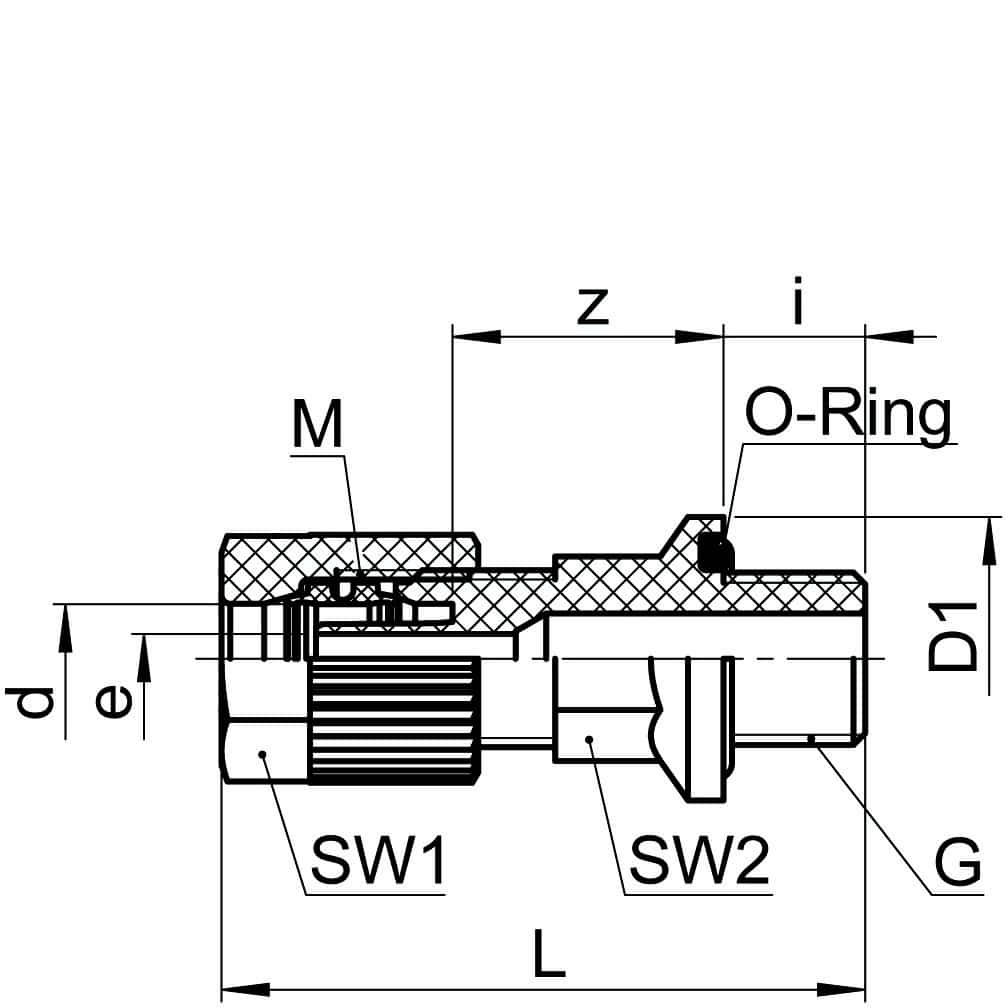

| Artikel nummer | VVS-nummer | d | G | bar | L | z | e | M | SW1/SW2 | D1 | i | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1681171100 | (VVS 062802.107) | 6/4 | 1/8 | 10 | 34.5 | 15.5 | 2.8 | 10 x 1 | 12/10 | 16 | 8 | |
| 1681171110 | 6/4 | 1/4 | 10 | 36.5 | 15.5 | 2.8 | 10 x 1 | 12/13 | 19.5 | 10 | ||
| 1681171120 | 6/4 | 3/8 | 10 | 37.5 | 16.5 | 2.8 | 10 x 1 | 12/17 | 23.5 | 10 | ||
| 1681171160 | 062802107 | 8/6 | 1/8 | 10 | 35.5 | 15.5 | 4.8 | 12 x 1 | 14/10 | 16 | 8 | |
| 1681171170 | 8/6 | 1/4 | 10 | 37.5 | 15.5 | 4.8 | 12 x 1 | 14/13 | 19.5 | 10 | ||
| 1681171180 | 8/6 | 3/8 | 10 | 38.5 | 16.5 | 4.8 | 12 x 1 | 14/17 | 23.5 | 10 | ||
| 1681171270 | 10/8 | 1/4 | 10 | 39 | 15 | 6.6 | 14 x 1 | 17/13 | 19.5 | 10 | ||
| 1681171280 | 10/8 | 3/8 | 10 | 40 | 16 | 6.6 | 14 x 1 | 17/17 | 23.5 | 10 | ||
| 1681171285 | (VVS 062802.107) | 10/8 | 1/2 | 10 | 45 | 19 | 6.6 | 14 x 1 | 17/19 | 29.5 | 12 | |
| 1681171380 | (VVS 062802.107) | 12/9 | 1/4 | 10 | 41.5 | 14 | 8 | 16 x 1 | 19/13 | 19.5 | 10 | |
| 1681171390 | 12/9 | 3/8 | 10 | 41.5 | 15 | 8 | 16 x 1 | 19/17 | 23.5 | 10 | ||
| 1681171400 | 12/9 | 1/2 | 10 | 46.5 | 18 | 8 | 16 x 1 | 19/19 | 29.5 | 12 |
