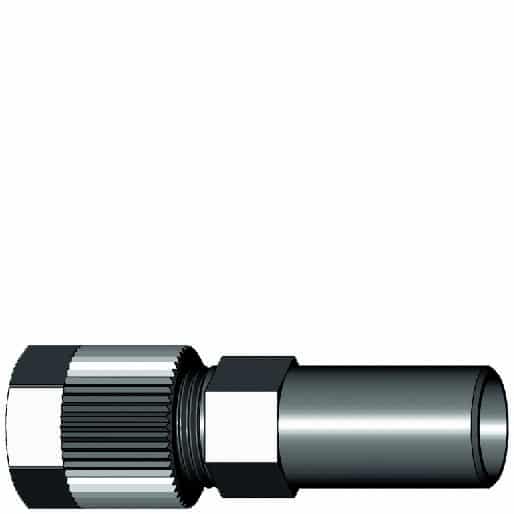

PA Reduktions kobling

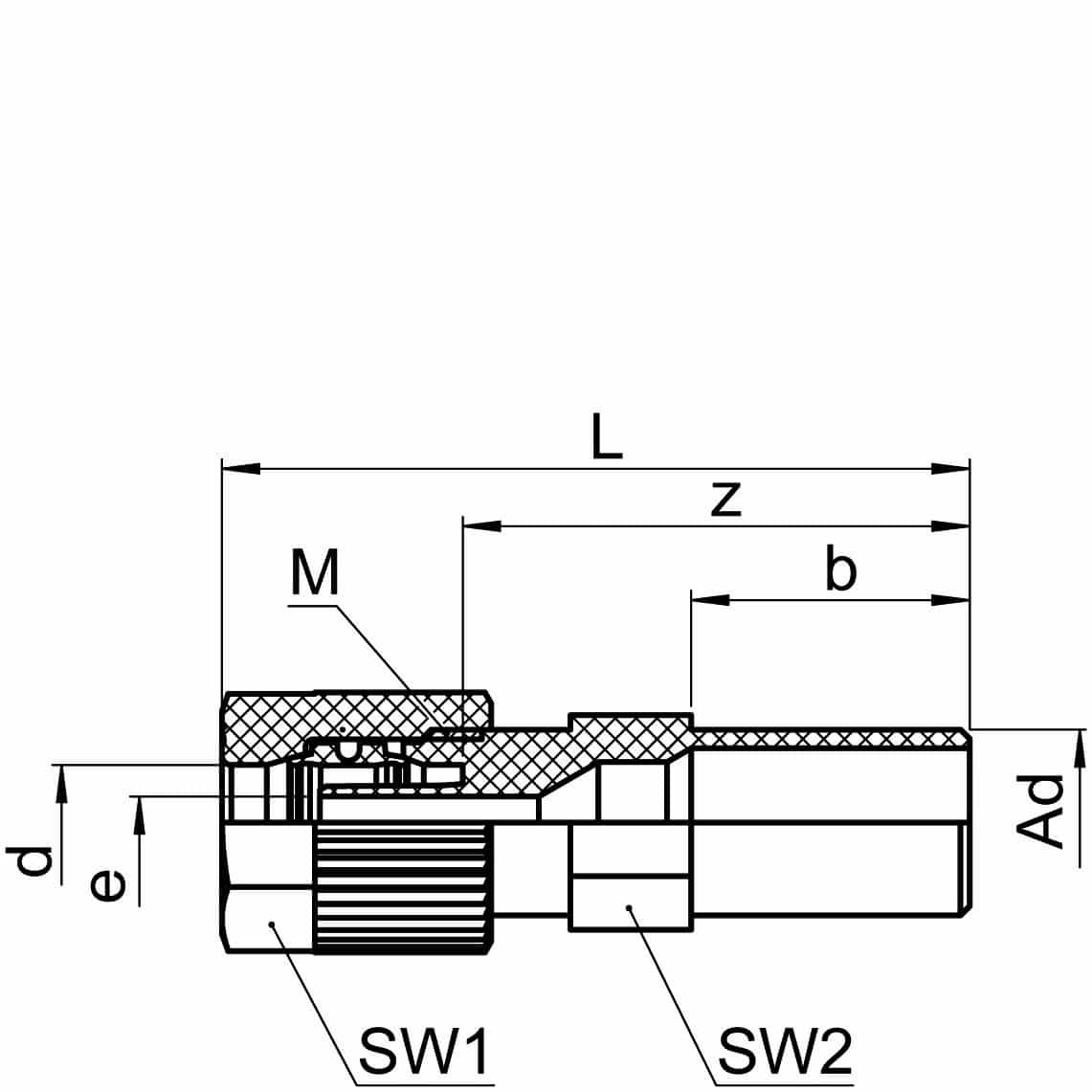

| Artikel nummer | VVS-nummer | d | AD | bar | L | z | e | M | SW1 | SW2 | b | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1681800140 | 6/4 | 8 | 10 | 37 | 26.4 | 2.8 | 10 x 1 | 12 | 10 | 14.5 | ||
| 1681800175 | 6/4 | 10 | 10 | 39 | 27.5 | 2.8 | 10 x 1 | 12 | 10 | 15 | ||
| 1681800190 | 8/6 | 10 | 10 | 39.5 | 27.5 | 4.8 | 12 x 1 | 14 | 12 | 15.5 | ||
| 1681800215 | 6/4 | 12 | 10 | 42 | 32 | 2.8 | 10 x 1 | 12 | 10 | 19 | ||
| 1681800225 | 8/6 | 12 | 10 | 43.5 | 32 | 4.8 | 12 x 1 | 14 | 12 | 19 | ||
| 1681800240 | 10/8 | 12 | 10 | 45 | 32 | 6.6 | 14 x 1 | 17 | 14 | 19 | ||
| 1681800242 | 10/7 | 12 | 10 | 45 | 31.5 | 5.6 | 14 x 1 | 17 | 14 | 19 |
| Artikel nummer | 1681800140 |
| VVS-nummer | |
| d | 6/4 |
| AD | 8 |
| bar | 10 |
| L | 37 |
| z | 26.4 |
| e | 2.8 |
| M | 10 x 1 |
| SW1 | 12 |
| SW2 | 10 |
| b | 14.5 |
| Artikel nummer | 1681800175 |
| VVS-nummer | |
| d | 6/4 |
| AD | 10 |
| bar | 10 |
| L | 39 |
| z | 27.5 |
| e | 2.8 |
| M | 10 x 1 |
| SW1 | 12 |
| SW2 | 10 |
| b | 15 |
| Artikel nummer | 1681800190 |
| VVS-nummer | |
| d | 8/6 |
| AD | 10 |
| bar | 10 |
| L | 39.5 |
| z | 27.5 |
| e | 4.8 |
| M | 12 x 1 |
| SW1 | 14 |
| SW2 | 12 |
| b | 15.5 |
| Artikel nummer | 1681800215 |
| VVS-nummer | |
| d | 6/4 |
| AD | 12 |
| bar | 10 |
| L | 42 |
| z | 32 |
| e | 2.8 |
| M | 10 x 1 |
| SW1 | 12 |
| SW2 | 10 |
| b | 19 |
| Artikel nummer | 1681800225 |
| VVS-nummer | |
| d | 8/6 |
| AD | 12 |
| bar | 10 |
| L | 43.5 |
| z | 32 |
| e | 4.8 |
| M | 12 x 1 |
| SW1 | 14 |
| SW2 | 12 |
| b | 19 |
| Artikel nummer | 1681800240 |
| VVS-nummer | |
| d | 10/8 |
| AD | 12 |
| bar | 10 |
| L | 45 |
| z | 32 |
| e | 6.6 |
| M | 14 x 1 |
| SW1 | 17 |
| SW2 | 14 |
| b | 19 |
| Artikel nummer | 1681800242 |
| VVS-nummer | |
| d | 10/7 |
| AD | 12 |
| bar | 10 |
| L | 45 |
| z | 31.5 |
| e | 5.6 |
| M | 14 x 1 |
| SW1 | 17 |
| SW2 | 14 |
| b | 19 |
