Vis alle mål +

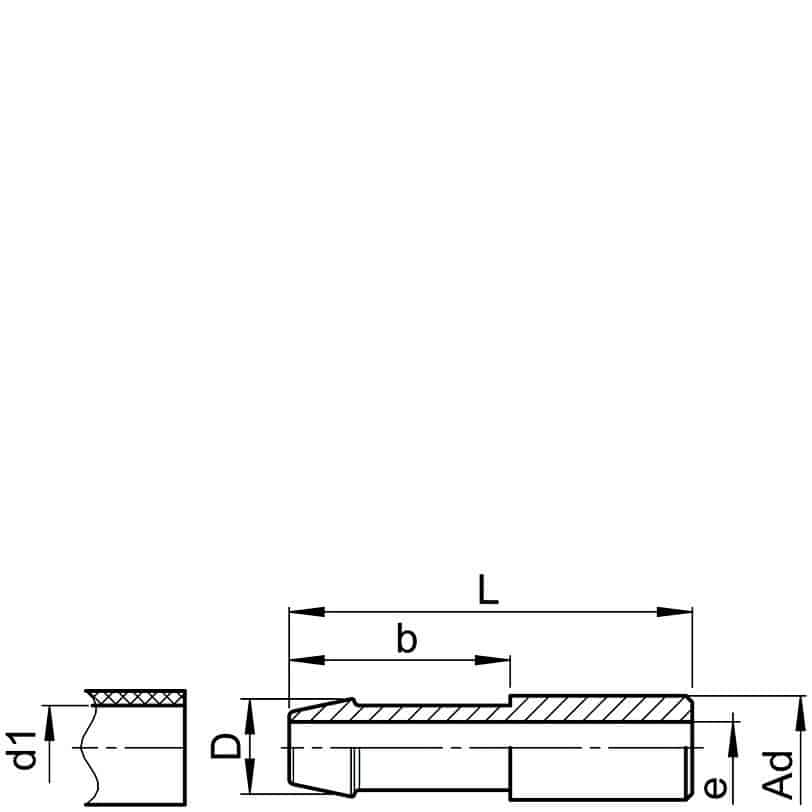

| Artikel nummer | VVS-nummer | d1 | bar | L | D | b | e | AD | Filer |
|---|---|---|---|---|---|---|---|---|---|
| 0160500035 | 2.5 | 125 | 17 | 3 | 8 | 2 | 4 | ||
| 0160500055 | 2.5 | 125 | 17 | 3 | 8 | 2 | 5 | ||
| 0160500060 | 3 | 125 | 18 | 3.8 | 9 | 2.5 | 5 | ||
| 0160500095 | 2.5 | 250 | 22 | 3 | 8 | 2 | 6 | ||
| 0160500100 | 3 | 250 | 23 | 3.8 | 9 | 2.5 | 6 | ||
| 0160500110 | 4 | 250 | 25 | 5 | 11 | 3 | 6 | ||
| 0160500122 | 6 | 250 | 31 | 7.5 | 17 | 4 | 6 | ||
| 0160500121 | 8 | 250 | 31 | 9.5 | 17 | 4 | 6 | ||
| 0160500132 | 4 | 150 | 25 | 5 | 11 | 3 | 8 | ||
| 0160500136 | 5 | 150 | 27 | 6 | 13 | 4 | 8 | ||
| 0160500140 | 6 | 150 | 31 | 7.5 | 17 | 5 | 8 | ||
| 0160500154 | 8 | 150 | 31 | 9.5 | 17 | 6 | 8 | ||
| 0160500157 | 10 | 150 | 33 | 11.5 | 19 | 6 | 8 | ||
| 0160500190 | 8 | 125 | 35 | 9.5 | 17 | 7 | 10 | ||
| 0160500198 | 10 | 125 | 37 | 11.5 | 19 | 8 | 10 | ||
| 0160500199 | 12 | 125 | 37 | 13.5 | 19 | 8 | 10 | ||
| 0160500200 | 13 | 125 | 39 | 15 | 21 | 8 | 10 | ||
| 0160500240 | 10 | 100 | 37 | 11.5 | 19 | 8 | 12 | ||
| 0160500260 | 13 | 100 | 39 | 15 | 21 | 9 | 12 | ||
| 0160500430 | 13 | 40 | 41 | 15 | 21 | 11 | 15 | ||
| 0160500620 | 16 | 40 | 47 | 18 | 26 | 14 | 18 | ||
| 0160500760 | 19 | 25 | 50 | 21.5 | 26 | 16 | 22 |
