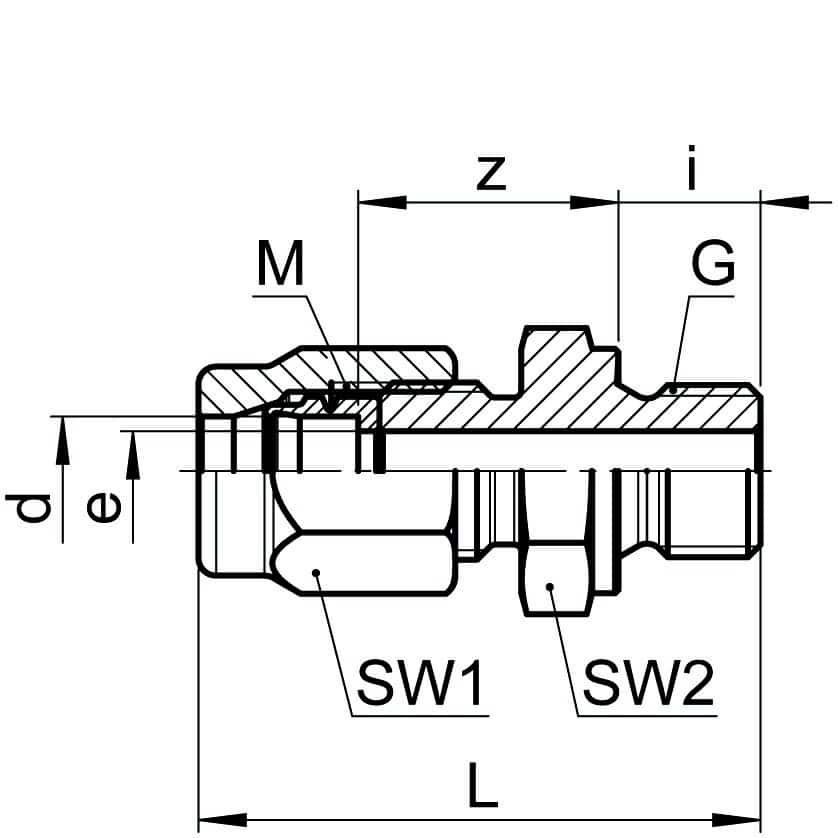

| Artikel nummer | VVS-nummer | d | G | bar | L | D | z | M | SW1 | SW2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0181141020 | 2 | 1/8 | 125 | 23.5 | 14.5 | 11.5 | 6x0,75 | 8 | 14 | 1.5 | ||
| 0181141040 | 3 | 1/8 | 125 | 25 | 14.5 | 12 | 6x0,75 | 8 | 14 | 2.5 | ||
| 0181141060 | 4 | 1/8 | 125 | 28.5 | 14.5 | 14.5 | 8x1 | 10 | 14 | 3.4 | ||
| 0181141065 | 4 | 1/4 | 125 | 35.5 | 18.5 | 16 | 10x1 | 12 | 19 | 3.4 | ||
| 0181141082 | 5 | 1/8 | 125 | 29 | 14.5 | 14.5 | 8x1 | 10 | 14 | 3.5 | ||
| 0181141084 | 5 | 1/4 | 125 | 35.5 | 18.5 | 16 | 10x1 | 12 | 19 | 4 | ||
| 0181141100 | 6 | 1/8 | 250 | 30 | 14.5 | 14.5 | 10x1 | 12 | 14 | 4.5 | ||
| 0181141110 | 6 | 1/4 | 250 | 35.5 | 18.5 | 16 | 10x1 | 12 | 19 | 4.5 | ||
| 0181141120 | 6 | 3/8 | 250 | 38.5 | 22.5 | 18.5 | 12x1 | 14 | 22 | 6.5 | ||
| 0181141125 | 6 | 1/2 | 250 | 42 | 26.5 | 20 | 12x1 | 14 | 27 | 4.5 | ||
| 0181141160 | 8 | 1/8 | 150 | 31.5 | 14.5 | 15.5 | 12x1 | 14 | 14 | 4.5 | ||
| 0181141170 | 8 | 1/4 | 150 | 37 | 18.5 | 17 | 12x1 | 14 | 19 | 6.5 | ||
| 0181141180 | 8 | 3/8 | 150 | 38.5 | 22.5 | 18.5 | 12x1 | 14 | 22 | 6.5 | ||
| 0181141185 | 8 | 1/2 | 150 | 42 | 27 | 20 | 12x1 | 14 | 27 | 6.5 | ||
| 0181141270 | 10 | 1/4 | 125 | 39 | 18.5 | 17 | 14x1 | 17 | 19 | 7 | ||
| 0181141280 | 10 | 3/8 | 125 | 40.5 | 22.5 | 18.5 | 14x1 | 17 | 22 | 8.5 | ||
| 0181141285 | 10 | 1/2 | 125 | 45 | 27 | 20 | 16x1 | 19 | 27 | 8.5 | ||
| 0181141380 | 12 | 1/4 | 100 | 40 | 18.5 | 17 | 16x1 | 19 | 19 | 7 | ||
| 0181141390 | 12 | 3/8 | 100 | 41.5 | 22.5 | 18.5 | 16x1 | 19 | 22 | 10 | ||
| 0181141400 | 12 | 1/2 | 100 | 45 | 27 | 20 | 16x1 | 19 | 27 | 10 | ||
| 0181141045 | 3.2 | 1/8 | 125 | 25 | 14.5 | 12 | 6x0,75 | 8 | 14 | 2.2 | ||
| 0181141135 | 6.35 | 1/8 | 250 | 30 | 14.5 | 14.5 | 10x1 | 12 | 14 | 4.5 | ||
| 0181141140 | 6.35 | 1/4 | 250 | 35.5 | 18.5 | 16 | 10x1 | 12 | 19 | 4.5 | ||
| 0181141230 | 9.52 | 1/4 | 125 | 39 | 18.5 | 17 | 14x1 | 17 | 19 | 8 | ||
| 0181141235 | 9.52 | 3/8 | 125 | 40.5 | 22.5 | 18.5 | 14x1 | 17 | 22 | 8 |
