Vis alle mål +

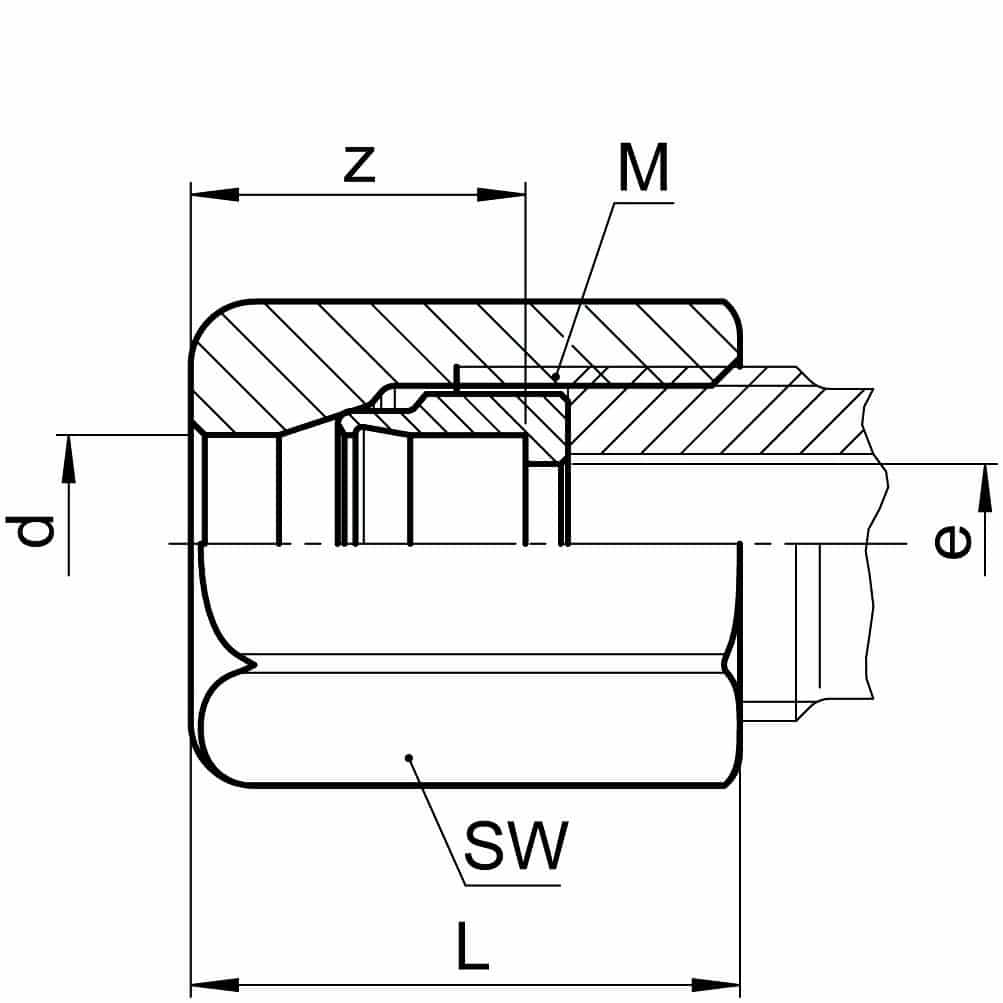

| Artikel nummer | VVS-nummer | d | bar | L | z | M | SW | e | Filer |
|---|---|---|---|---|---|---|---|---|---|
| 0560210020 | 2 | 250 | 8.5 | 3.5 | 6 x 0,75 | 8 | 1.5 | ||
| 0560210030 | 3 | 250 | 10 | 5 | 6 x 0,75 | 8 | 2.5 | ||
| 0560210040 | 4 | 250 | 13 | 5.5 | 8 x 1 | 10 | 3.5 | ||
| 0560210050 | 5 | 250 | 13.5 | 6 | 8 x 1 | 10 | 4 | ||
| 0560210060 | 6 | 200 | 15.5 | 8 | 10 x 1 | 12 | 4.5 | ||
| 0560210080 | 8 | 200 | 17 | 8.5 | 12 x 1 | 14 | 6.5 | ||
| 0560210100 | 10 | 160 | 19.5 | 11.5 | 14 x 1 | 17 | 8.5 | ||
| 0560210120 | 12 | 160 | 20.5 | 12 | 16 x 1 | 19 | 10 | ||
| 0560210150 | 15 | 100 | 24 | 14 | 20 x 1,5 | 24 | 13 | ||
| 0560210180 | 18 | 100 | 25 | 15.5 | 24 x 1,5 | 30 | 16 | ||
| 0560210220 | 22 | 64 | 28 | 19 | 28 x 1,5 | 32 | 20 | ||
| 0560210280 | 28 | 40 | 31.5 | 19.5 | 36 x 2 | 41 | 24 | ||
| 0560210032 | 3.2 | 250 | 10 | 5 | 6 x 0,75 | 8 | 2.5 | ||
| 0560210063 | 6.35 | 200 | 15.5 | 8 | 10 x 1 | 12 | 4.5 | ||
| 0560210095 | 9.52 | 160 | 18.5 | 11.5 | 14 x 1 | 17 | 8 | ||
| 0560210127 | 12.7 | 160 | 23.5 | 13.5 | 20 x 1,5 | 24 | 11 |
