Vis alle mål +

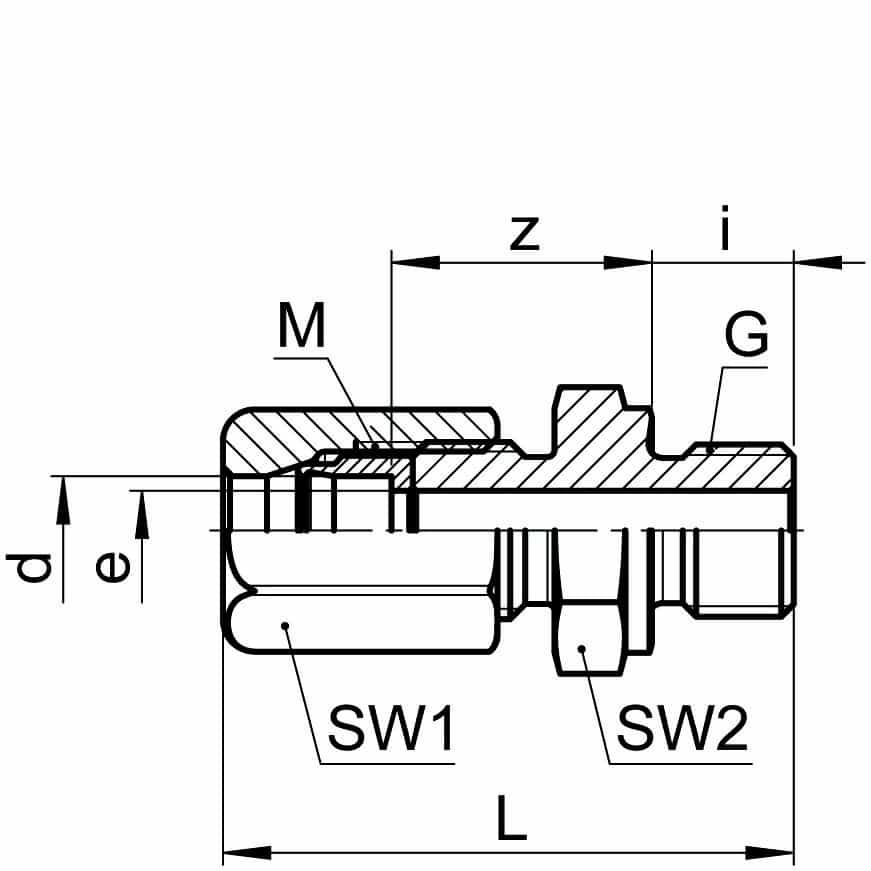

| Artikel nummer | VVS-nummer | d | G | bar | L | e | z | M | SW2 | SW1 | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0581141020 | 2 | 1/8 | 250 | 23.5 | 1.5 | 12 | 6 x 0,75 | 14 | 8 | ||
| 0581141040 | 3 | 1/8 | 250 | 23 | 2.2 | 12 | 6 x 0,75 | 14 | 8 | ||
| 0581141060 | 4 | 1/8 | 200 | 31 | 3.4 | 14.5 | 10 x 1 | 14 | 12 | ||
| 0581141065 | 4 | 1/4 | 200 | 36 | 3.4 | 16 | 10 x 1 | 19 | 12 | ||
| 0581141082 | 5 | 1/8 | 200 | 31 | 4 | 14.5 | 10 x 1 | 14 | 12 | ||
| 0581141084 | 5 | 1/4 | 200 | 36 | 4 | 16 | 10 x 1 | 19 | 12 | ||
| 0581141100 | 6 | 1/8 | 200 | 31 | 4.5 | 14.5 | 10 x 1 | 14 | 12 | ||
| 0581141110 | 6 | 1/4 | 200 | 36 | 4.5 | 16 | 10 x 1 | 19 | 12 | ||
| 0581141120 | 6 | 3/8 | 200 | 38 | 4.5 | 17.5 | 10 x 1 | 22 | 12 | ||
| 0581141125 | 6 | 1/2 | 200 | 40.5 | 4.5 | 18 | 10 x 1 | 27 | 12 | ||
| 0581141160 | 8 | 1/8 | 200 | 32.5 | 5 | 15.5 | 12 x 1 | 14 | 14 | ||
| 0581141170 | 8 | 1/4 | 200 | 38 | 6.5 | 17 | 12 x 1 | 19 | 14 | ||
| 0581141180 | 8 | 3/8 | 160 | 42 | 6.5 | 18.5 | 14 x 1 | 22 | 17 | ||
| 0581141185 | 8 | 1/2 | 200 | 42 | 6.5 | 19 | 12 x 1 | 27 | 14 | ||
| 0581141270 | 10 | 1/4 | 160 | 41 | 7 | 17 | 14 x 1 | 19 | 17 | ||
| 0581141280 | 10 | 3/8 | 160 | 42.5 | 8.5 | 18.5 | 14 x 1 | 22 | 17 | ||
| 0581141285 | 10 | 1/2 | 160 | 45 | 8.5 | 19 | 14 x 1 | 27 | 17 | ||
| 0581141290 | 10 | 3/4 | 64 | 48 | 8.5 | 20 | 14 x 1 | 32 | 17 | ||
| 0581141380 | 12 | 1/4 | 160 | 42 | 7 | 17 | 16 x 1 | 19 | 19 | ||
| 0581141390 | 12 | 3/8 | 160 | 43.5 | 10 | 18.5 | 16 x 1 | 22 | 19 | ||
| 0581141400 | 12 | 1/2 | 160 | 46 | 10 | 19 | 16 x 1 | 27 | 19 | ||
| 0581141405 | 12 | 3/4 | 64 | 49 | 10 | 20 | 16 x 1 | 32 | 19 | ||
| 0581141504 | 14 | 1/2 | 100 | 49.5 | 12 | 21.5 | 20 x 1,5 | 27 | 24 | ||
| 0581141534 | 15 | 1/2 | 100 | 49.5 | 13 | 21.5 | 20 x 1,5 | 27 | 24 | ||
| 0581141566 | 16 | 1/2 | 100 | 51 | 14 | 21.5 | 24 x 1,5 | 27 | 30 | ||
| 0581141646 | 18 | 1/2 | 100 | 51 | 13.5 | 21.5 | 24 x 1,5 | 27 | 30 | ||
| 0581141648 | 18 | 3/4 | 64 | 57.5 | 16 | 22.5 | 28 x 1,5 | 32 | 32 | ||
| 0581141652 | 18 | 1 | 64 | 57 | 13.5 | 23.5 | 24 x 1,5 | 41 | 30 | ||
| 0581141768 | 22 | 3/4 | 64 | 57.5 | 19 | 22.5 | 28 x 1,5 | 32 | 32 | ||
| 0581141850 | 28 | 1 | 40 | 64.5 | 24 | 27 | 36 x 2 | 41 | 41 | ||
| 0581141045 | 3.2 | 1/8 | 250 | 25 | 2.2 | 12 | 6 x 0,75 | 14 | 8 | ||
| 0581141135 | 6.35 | 1/8 | 200 | 31 | 4.5 | 14.5 | 10 x 1 | 14 | 12 | ||
| 0581141140 | 6.35 | 1/4 | 200 | 36.5 | 4.5 | 16 | 10 x 1 | 19 | 12 | ||
| 0581141145 | 6.35 | 3/8 | 200 | 38 | 4.5 | 17.5 | 10 x 1 | 22 | 12 | ||
| 0581141150 | 6.35 | 1/2 | 200 | 41.5 | 4.5 | 19 | 12 x 1 | 27 | 14 | ||
| 0581141230 | 9.52 | 1/4 | 160 | 40.5 | 7 | 17 | 14 x 1 | 19 | 17 | ||
| 0581141235 | 9.52 | 3/8 | 160 | 42 | 8 | 18.5 | 14 x 1 | 22 | 17 | ||
| 0581141240 | 9.52 | 1/2 | 160 | 44.5 | 8 | 19 | 14 x 1 | 27 | 17 | ||
| 0581141434 | 12.7 | 1/2 | 100 | 49 | 11 | 21.5 | 20 x 1,5 | 27 | 24 | ||
| 0581141536 | 12.7 | 3/4 | 160 | 52 | 12 | 22.5 | 20 x 1,5 | 32 | 24 | ||
| 0581141474 | 13.5 | 1/2 | 100 | 49.5 | 11 | 21.5 | 20 x 1,5 | 27 | 24 | ||
| 0581141616 | 17.2 | 1/2 | 100 | 51 | 13.5 | 21.5 | 24 x 1,5 | 27 | 30 | ||
| 0581141738 | 21.3 | 3/4 | 64 | 57.5 | 19 | 22.5 | 28 x 1,5 | 32 | 32 |
