Vis alle mål +

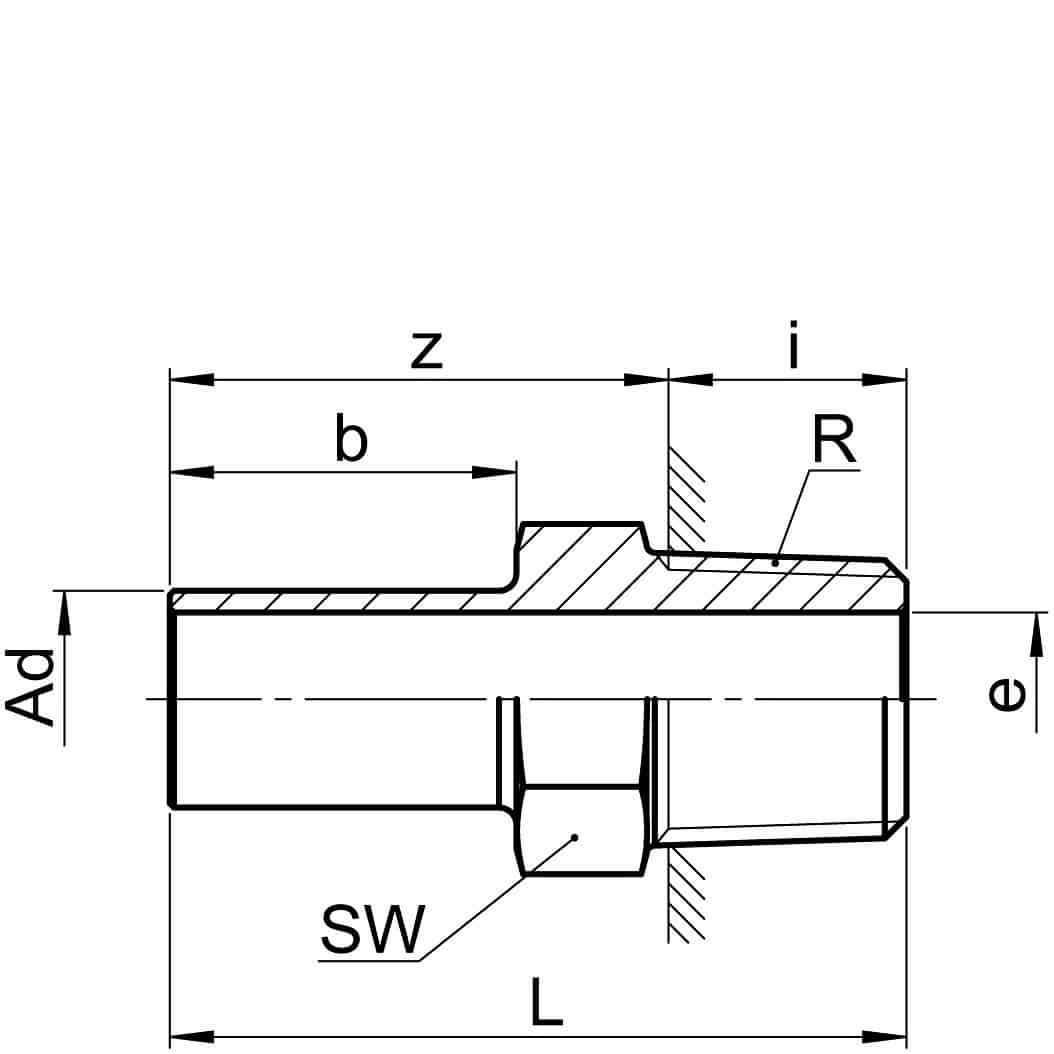

| Artikel nummer | VVS-nummer | R | AD | bar | L | z | SW | e | i | b | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0561601060 | 1/8 | 4 | 250 | 22 | 17 | 10 | 2.5 | 5 | 10 | ||
| 0561601082 | 1/8 | 5 | 250 | 22.5 | 17.5 | 10 | 3.2 | 5 | 10.5 | ||
| 0561601100 | (VVS 033562.006) | 1/8 | 6 | 200 | 27 | 22 | 12 | 4 | 5 | 14 | |
| 0561601110 | 1/4 | 6 | 200 | 32 | 24 | 14 | 4 | 8 | 14 | ||
| 0561601160 | (VVS 033562.104) | 1/8 | 8 | 200 | 29 | 24 | 12 | 6 | 5 | 15 | |
| 0561601170 | (VVS 033562.107) | 1/4 | 8 | 200 | 33 | 25 | 14 | 6 | 8 | 15 | |
| 0561601270 | 033562010 | 1/4 | 10 | 160 | 35 | 27 | 14 | 7 | 8 | 17 | |
| 0561601280 | 3/8 | 10 | 160 | 35 | 27 | 17 | 7 | 8 | 17 | ||
| 0561601285 | (VVS 033562.118) | 1/2 | 10 | 160 | 39 | 29 | 22 | 7 | 10 | 16 | |
| 0561601380 | (VVS 033562.127) | 1/4 | 12 | 160 | 36 | 28 | 14 | 8.5 | 8 | 18 | |
| 0561601390 | (VVS 033562.012) | 3/8 | 12 | 160 | 36 | 28 | 17 | 9 | 8 | 18 | |
| 0561601400 | (VVS 033562.132) | 1/2 | 12 | 160 | 41 | 31 | 22 | 9 | 10 | 18 | |
| 0561601534 | 1/2 | 15 | 100 | 44 | 34 | 22 | 12 | 10 | 21 |
