Vis alle mål +

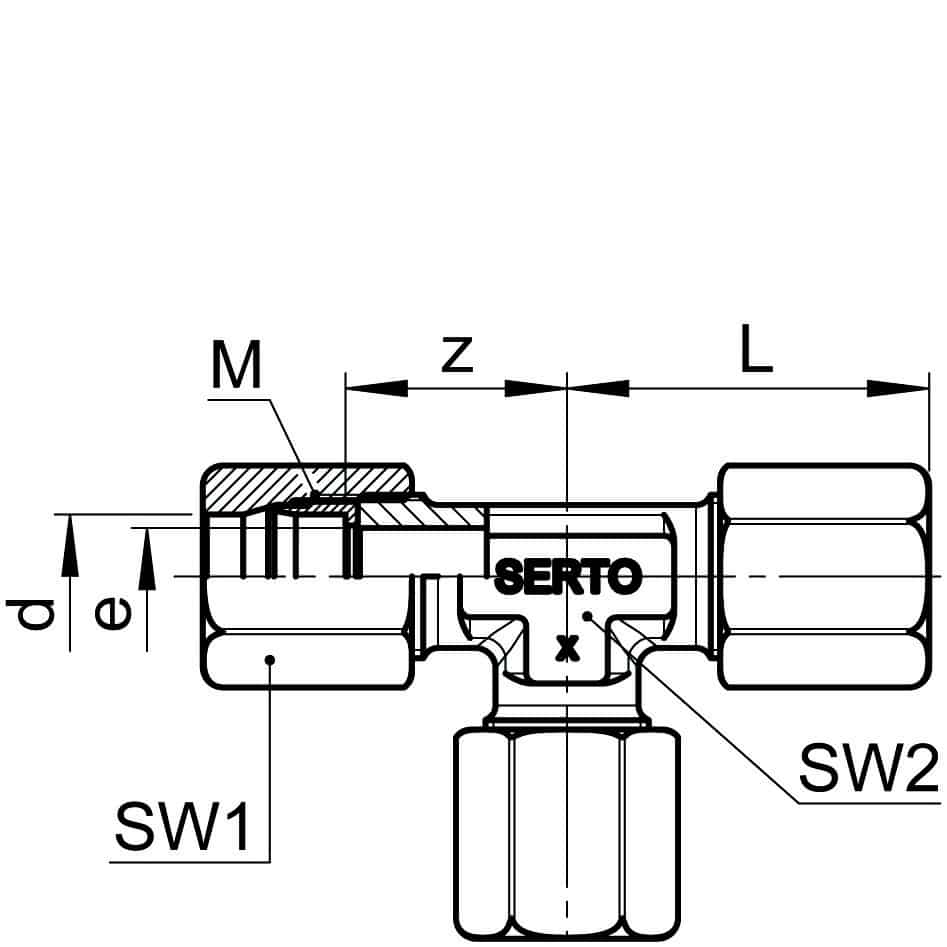

| Artikel nummer | VVS-nummer | d | bar | SW1 | SW2 | L | z | M | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| 0583000020 | 2 | 250 | 8 | 9 | 19 | 15.5 | 6 x 0,75 | 1.5 | ||
| 0583000030 | 3 | 250 | 8 | 9 | 21 | 16 | 6 x 0,75 | 2.5 | ||
| 0583000040 | 4 | 250 | 10 | 9 | 21.5 | 16 | 8 x 1 | 3.5 | ||
| 0583000050 | 5 | 250 | 10 | 9 | 22 | 16 | 8 x 1 | 3.5 | ||
| 0583000060 | 6 | 200 | 12 | 9 | 24 | 16 | 10 x 1 | 4.5 | ||
| 0583000080 | 8 | 200 | 14 | 10 | 26.5 | 18 | 12 x 1 | 6.5 | ||
| 0583000100 | 10 | 160 | 17 | 12 | 32 | 20.5 | 14 x 1 | 8.5 | ||
| 0583000120 | 12 | 160 | 19 | 14 | 33.5 | 21.5 | 16 x 1 | 9.5 | ||
| 0583000140 | 14 | 100 | 24 | 17 | 38.5 | 24.5 | 20 x 1,5 | 12 | ||
| 0583000150 | 15 | 100 | 24 | 17 | 38.5 | 24.5 | 20 x 1,5 | 13 | ||
| 0583000160 | 16 | 100 | 30 | 22 | 42 | 26.5 | 24 x 1,5 | 14 | ||
| 0583000180 | 18 | 100 | 30 | 22 | 42 | 26.5 | 24 x 1,5 | 15 | ||
| 0583000220 | 22 | 64 | 32 | 27 | 49.5 | 30.5 | 28 x 1,5 | 19 | ||
| 0583000280 | 28 | 64 | 41 | 36 | 62.5 | 43 | 36 x 2 | 24 | ||
| 0583000032 | 3.2 | 250 | 8 | 9 | 21 | 16 | 6 x 0,75 | 2.5 | ||
| 0583000063 | 6.35 | 200 | 12 | 9 | 24 | 16 | 10 x 1 | 4.5 | ||
| 0583000095 | 9.52 | 160 | 17 | 12 | 32 | 20.5 | 14 x 1 | 8 | ||
| 0583000127 | 12.7 | 100 | 24 | 17 | 38 | 24.5 | 20 x 1,5 | 11 | ||
| 0583000135 | 13.5 | 100 | 24 | 17 | 38.5 | 24.5 | 20 x 1,5 | 12 | ||
| 0583000172 | 17.2 | 100 | 30 | 22 | 42 | 26.5 | 24 x 1,5 | 15 | ||
| 0583000213 | 21.3 | 64 | 32 | 27 | 50 | 31 | 28 x 1,5 | 19 |
