Vis alle mål +

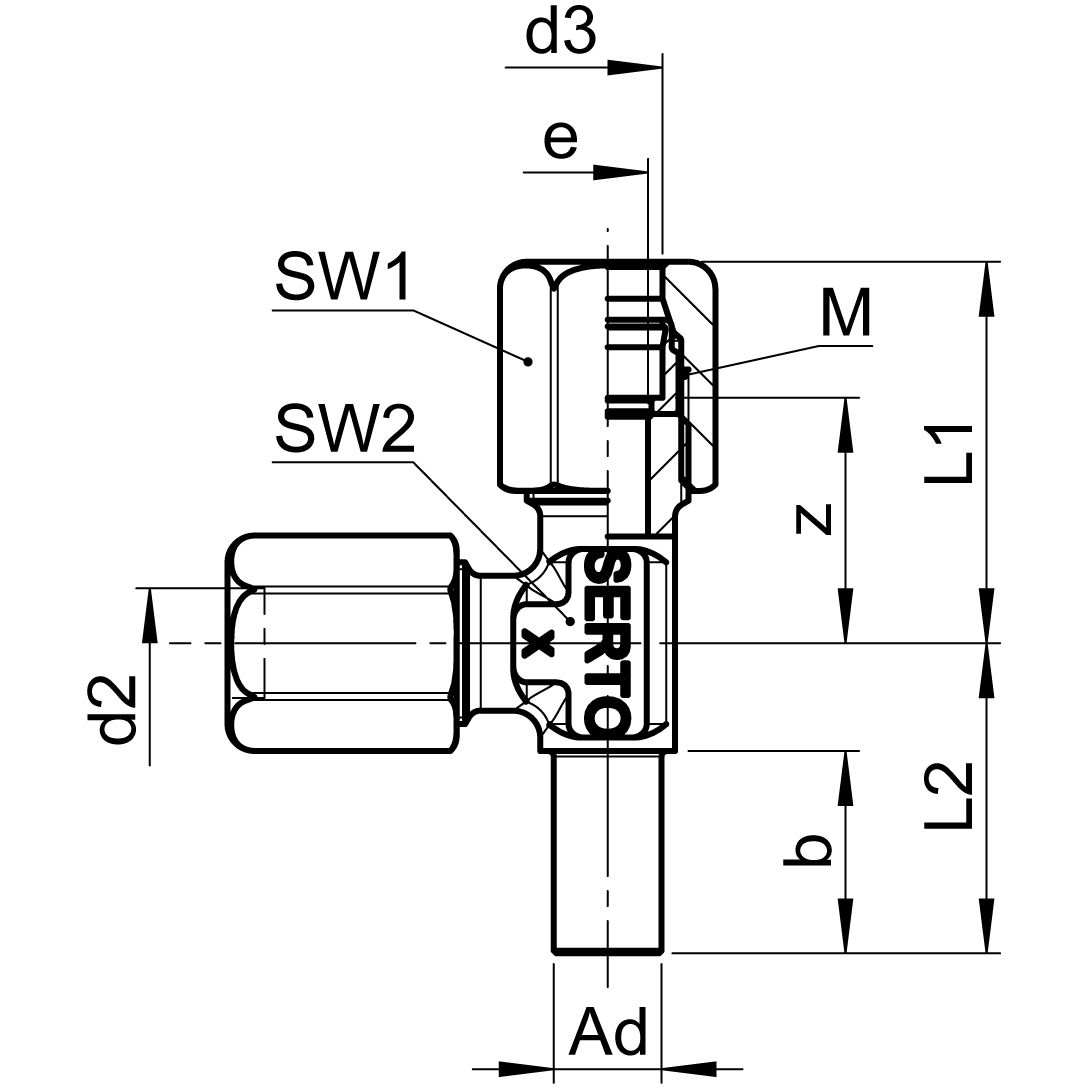

| Artikel nummer | VVS-nummer | Adxd1 | bar | M | SW1 | SW2 | L1 | L2 | b | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0583610045 | A6-4-4 | 200 | 10×1 | 12 | 9 | 24 | 18 | 12.5 | 16 | 3.5 | ||
| 0583610053 | A6-5-5 | 200 | 10×1 | 12 | 9 | 24 | 18 | 12.5 | 16 | 4 | ||
| 0583610060 | A6-6-6 | 200 | 10×1 | 12 | 9 | 24 | 18 | 12.5 | 16 | 4 | ||
| 0583610063 | A8-6-6 | 200 | 12×1 | 14 | 10 | 26.5 | 23 | 15 | 18 | 4.5 | ||
| 0583610080 | A8-8-8 | 200 | 12×1 | 14 | 10 | 26.5 | 23 | 15 | 18 | 6 | ||
| 0583610083 | A10-8-8 | 160 | 14×1 | 17 | 12 | 32 | 25.5 | 17 | 20.5 | 6.5 | ||
| 0583610100 | A10-10-10 | 160 | 14×1 | 17 | 12 | 32 | 25.5 | 17 | 20.5 | 7 | ||
| 0583610061 | A6-6,35-6,35 | 200 | 10×1 | 12 | 9 | 24 | 18 | 12.5 | 16 | 4 | ||
| 0583610068 | A8-6,35-6,35 | 200 | 12×1 | 14 | 10 | 26.5 | 23 | 15 | 18 | 4.5 |
