Name: SO NV 41A21
SKU: 41692

Vis alle mål +

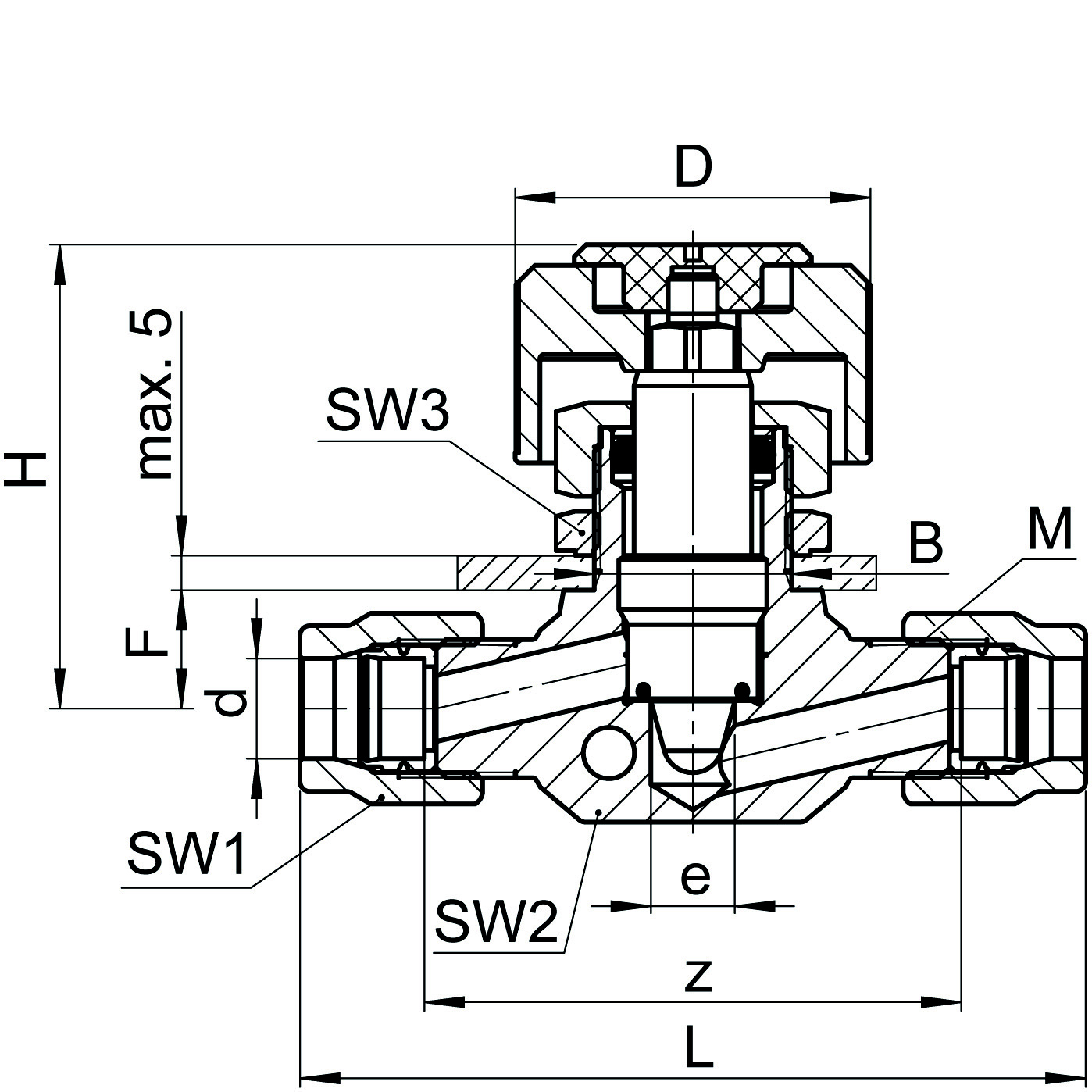

Artikel nummer	d	bar	M	SW1/SW2/SW3	L	D	H	B	F	z/e
0280000040	4	50	10 x 1	12/14/19	61	26	47	16.5	10	46/3,4
0280000050	5	50	10 x 1	12/14/19	61	26	47	16.5	10	46/4
0280000060	6	50	10 x 1	12/14/19	61	26	47	16.5	10	46,5/4
0280000063	6.35	50	10 x 1	12/14/19	61	26	41.5	16.5	10	46/4
0280000080	8	50	12 x 1	14/14/19	62.5	26	47	16.5	10	46,5/5
0280000095	9.52	50	14 x 1	17/18/24	75.5	36	54.5	20.5	12	54,5/6,5
0280000100	10	50	14 x 1	17/18/24	75.5	36	54.5	20.5	12	54,5/6,5
0280000120	12	50	16 x 1	19/18/24	86.5	36	56.5	20.5	14	62,5/8
0280000127	12.7	50	20 x 1,5	24/22/27	92	36	66	24.5	15	67/10
0280000130	13	50	20 x 1,5	24/22/27	92	36	66	24.5	15	67/10
0280000140	14	50	20 x 1,5	24/22/27	92	36	66	24.5	15	67/10
0280000150	15	50	20 x 1,5	24/22/27	92	36	66	24.5	15	67/10

Datablad

Produktblad

SO NV 41A21
