SO NV 51A21EB

Syrefast Reguleringsventil, konisk udv. gevind

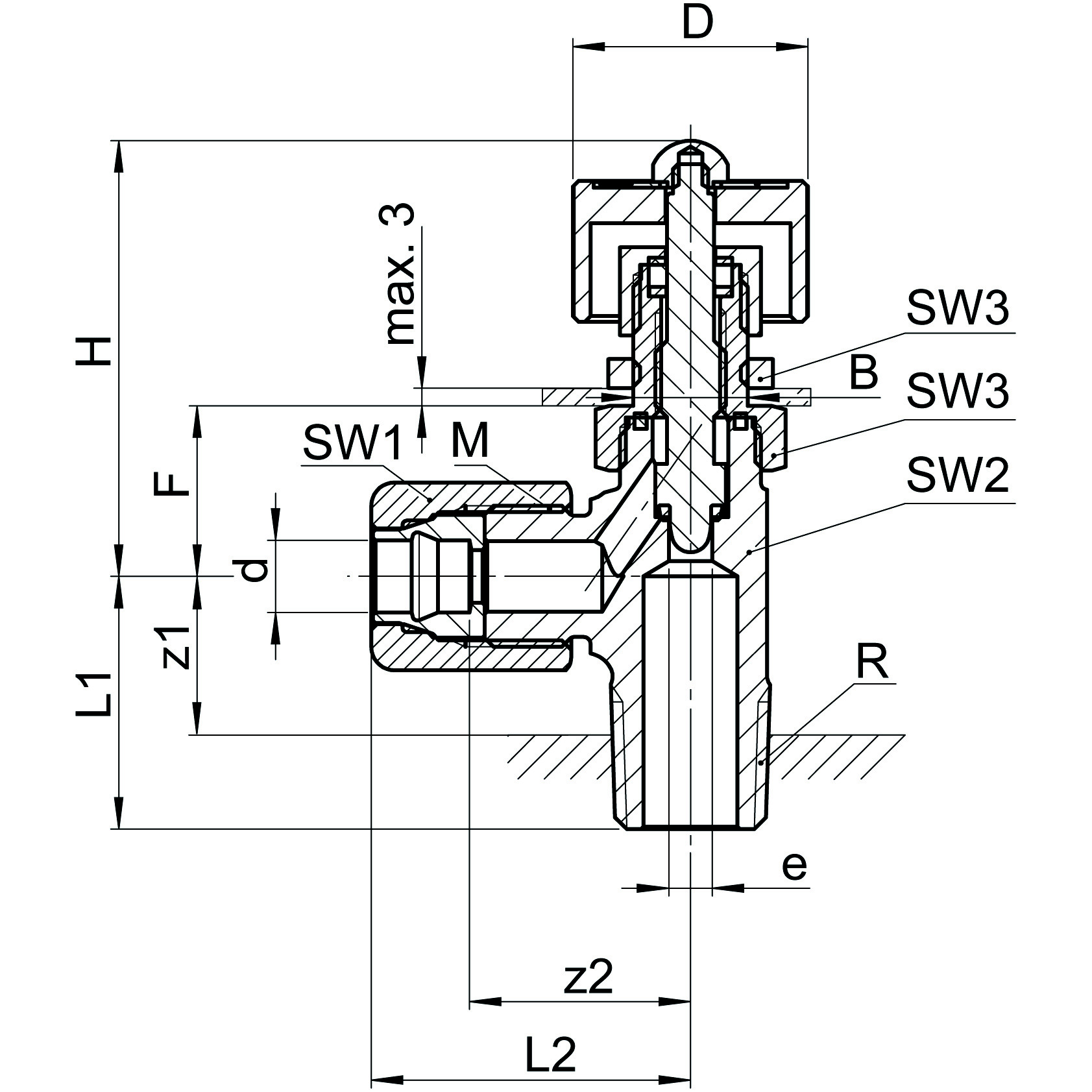

Vis alle mål +

Artikel nummer	d	R	e	bar	M	SW1/SW2	SW3	z1/z2	L1/L2	H/F
0680021060	4	1/8	3.5	100	10 x 1	12/14	14	9,5/17	14,5/25	36/14,5
0680021082	5	1/8	3.5	100	10 x 1	12/14	14	9,5/17	14,5/25	36/14,5
0680021100	6	1/8	3.5	100	10 x 1	12/14	14	9,5/17	14,5/25	36/14,5
0680021110	6	1/4	5	100	12 x 1	14/14	14	13,5/19	21,5/27	36/14,5
0680021170	8	1/4	3.5	100	12 x 1	14/14	14	13,5/18	21,5/27	36/14,5
0680021280	10	3/8	7	64	14 x 1	17/22	22	14/23	22/35	51/21,5
0680021390	12	3/8	7	64	16 x 1	19/22	22	16/23	24/36	51/21,5
0680021534	15	1/2	7	64	20 x 1,5	24/24	24	16/25,5	16/39	51/21,5
0680021135	6.35	1/8	3.5	40	10 x 1	12/14	14	9,5/17	14,5/25	36/14,5
0680021235	9.52	3/8	7	100	14 x 1	17/22	22	14/23,5	22/34,5	51/21,5
0680021434	12.7	1/2	7	64	20 x 1,5	22/22	22	16/25,5	16/39	51/21,5

Datablad
