SO NV 51A40E

Syrefast Reguleringsventil 90°, konisk udv. gevind

  • Syrefast Regulerings ventil med overgangsnippel
  • Vinkel 90°
  • AISI316Ti, 1.4571
  • med reduceret klemmering
  • R = Konisk udvendigt gevind

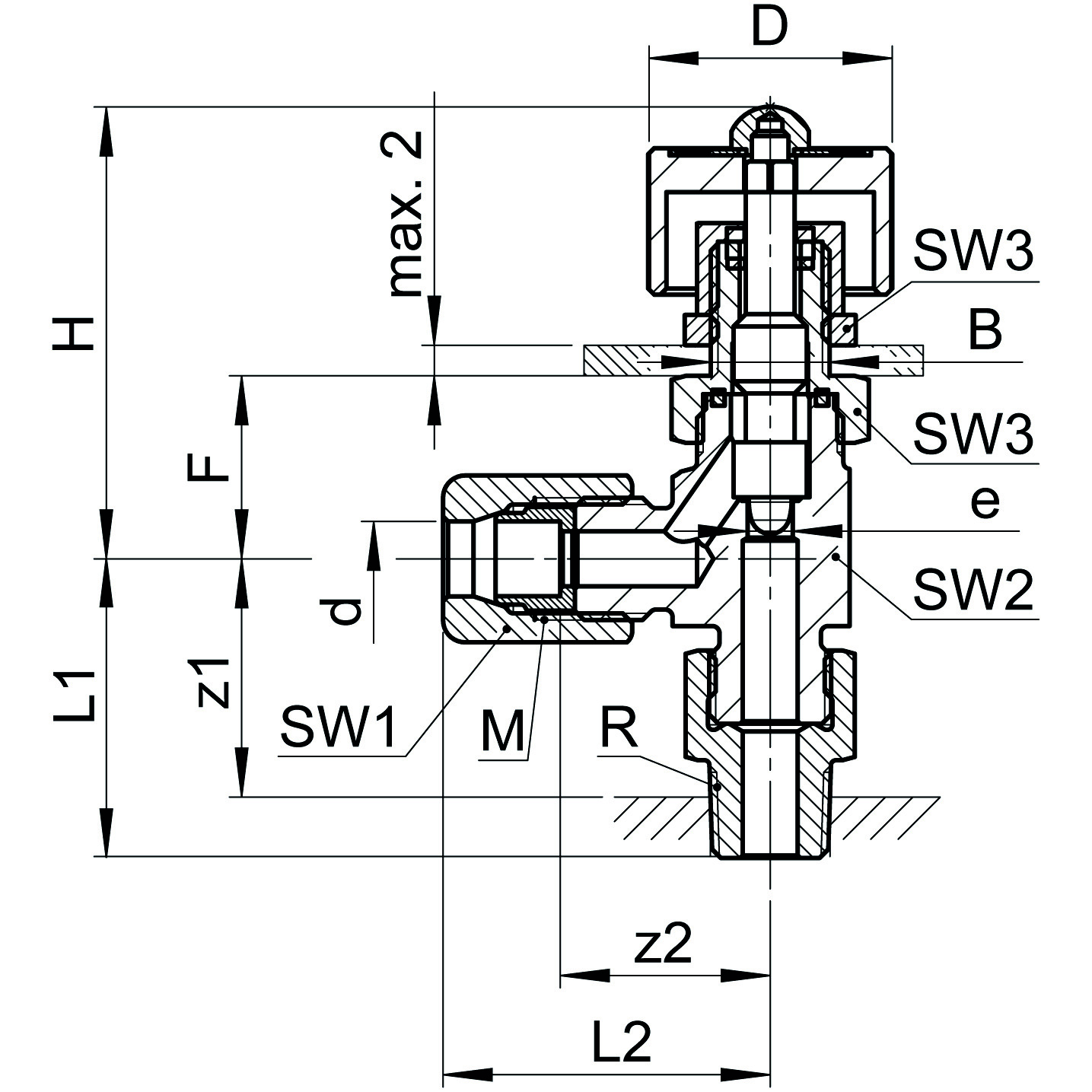

Vis alle mål +
Artikel nummer VVS-nummer dGbareMSW1/SW2/SW3HFL1/L2z1/z2Filer
0680023065 4 1/41003.510 x 112/14/143714.528,5/2519/17
0680023084 51/41003.510 x 112/14/143714.528,5/2519/17
0680023180 83/8646.514 x 117/22/225121.531/3521/23,5
0680023185 81/2646.514 x 117/22/225121.532/3519/23,5
0680023230 9.521/464714 x 117/22/225121.531/34,521,5/23,5
0680023235 9.523/864714 x 117/22/225121.531/34,521/23,5
0680023240 9.521/264714 x 117/22/225121.532/34,516/23,5
0680023270 101/464714 x 117/22/22512231/3521,5/23,5
0680023280 103/864714 x 117/22/22512231/3521/23,5
0680023285 101/264714 x 117/22/22512232/3519/23,5
0680023400 121/264716 x 119/22/225121.536/3623/23,5
0680023434 12.71/264720 X 1,522/24/245121.536/3636/36
0680023534 151/264720 X 1,522/24/245121.536/3623/23,5
Datablad
