Name: SOL 51121
SKU: 40321

Vis alle mål +

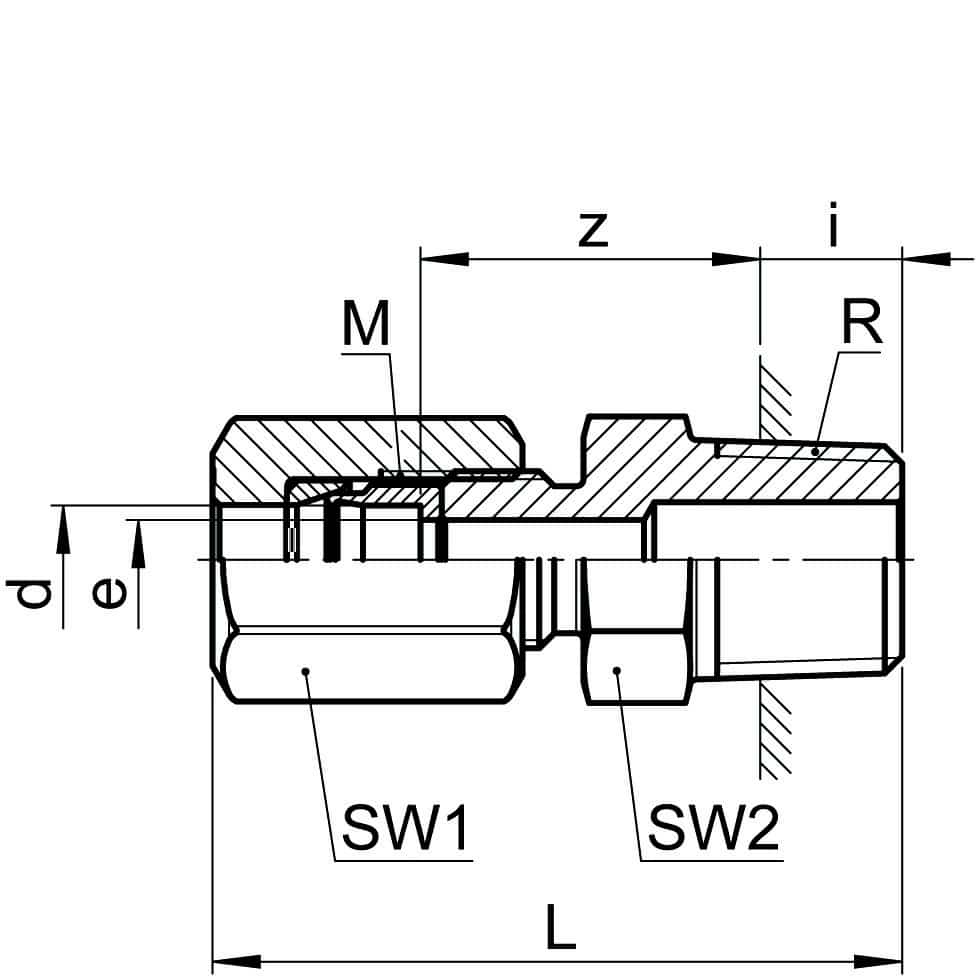

Artikel nummer	VVS-nummer	d	R	bar	M	SW1	SW2	L	i	z	e
0781101100		6	1/8	400	10x1	14	10	31	5	17	4.5
0781101110		6	1/4	400	10x1	14	14	37	8	21	4.5
0781101120		6	3/8	400	10x1	14	17	37	8	20.6	4.5
0781101125		6	1/2	400	10x1	14	22	42	10	23.8	4.5
0781101160		8	1/8	330	12x1	17	12	32.5	5	18	6
0781101170	033501018	8	1/4	330	12x1	17	14	38.5	8	22	6.5
0781101180		8	3/8	330	12x1	17	17	38.5	8	21.6	6.5
0781101185		8	1/2	330	12x1	17	22	43.5	10	24.8	6.5
0781101270		10	1/4	330	14x1	19	14	40.5	8	22	8.5
0781101280		10	3/8	330	14x1	19	17	40.5	8	21.6	8.5
0781101285		10	1/2	330	14x1	19	22	45.5	10	24.8	8.5
0781101380	033501018	12	1/4	330	16x1	22	17	41.5	8	22	8.5
0781101390		12	3/8	330	16x1	22	17	41.5	8	21.6	10
0781101400		12	1/2	330	16x1	22	22	4.5	10	24.8	10
0781101532		15	3/8	250	20x1,5	27	22	45.5	8	24.1	10.5
0781101534	(VVS 033501.018)	15	1/2	250	20x1,5	27	22	50.5	10	27.3	13
0781101566	(VVS 033501.018)	16	1/2	200	24x1,5	30	24	55	10	28.3	13.5
0781101568	(VVS 033501.018)	16	3/4	200	24x1,5	30	27	55	12	27	14
0781101646	(VVS 033501.018)	18	1/2	200	24x1,5	30	24	53	10	28.3	13.5
0781101648	(VVS 033501.018)	18	3/4	200	24x1,5	30	27	54	12	27	15
0781101135		6.35	1/8	400	10x1	14	10	31	5	25	4.5
0781101140		6.35	1/4	400	10x1	14	14	37	8	33	4.5
0781101145		6.35	3/8	400	10x1	14	17	37	8	21	4.5
0781101150		6.35	1/2	330	10x1	14	22	42	10	22	4.5
0781101230		9.52	1/4	330	14x1	19	14	40	8	22	8
0781101235		9.52	3/8	330	14x1	19	17	40	8	22	8
0781101240		9.52	1/2	330	14x1	19	22	45	10	23	8
0781101434		12.7	1/2	250	20x1,5	27	22	48.5	10	27.5	11

Datablad

Produktblad

SOL 51121
