Vis alle mål +

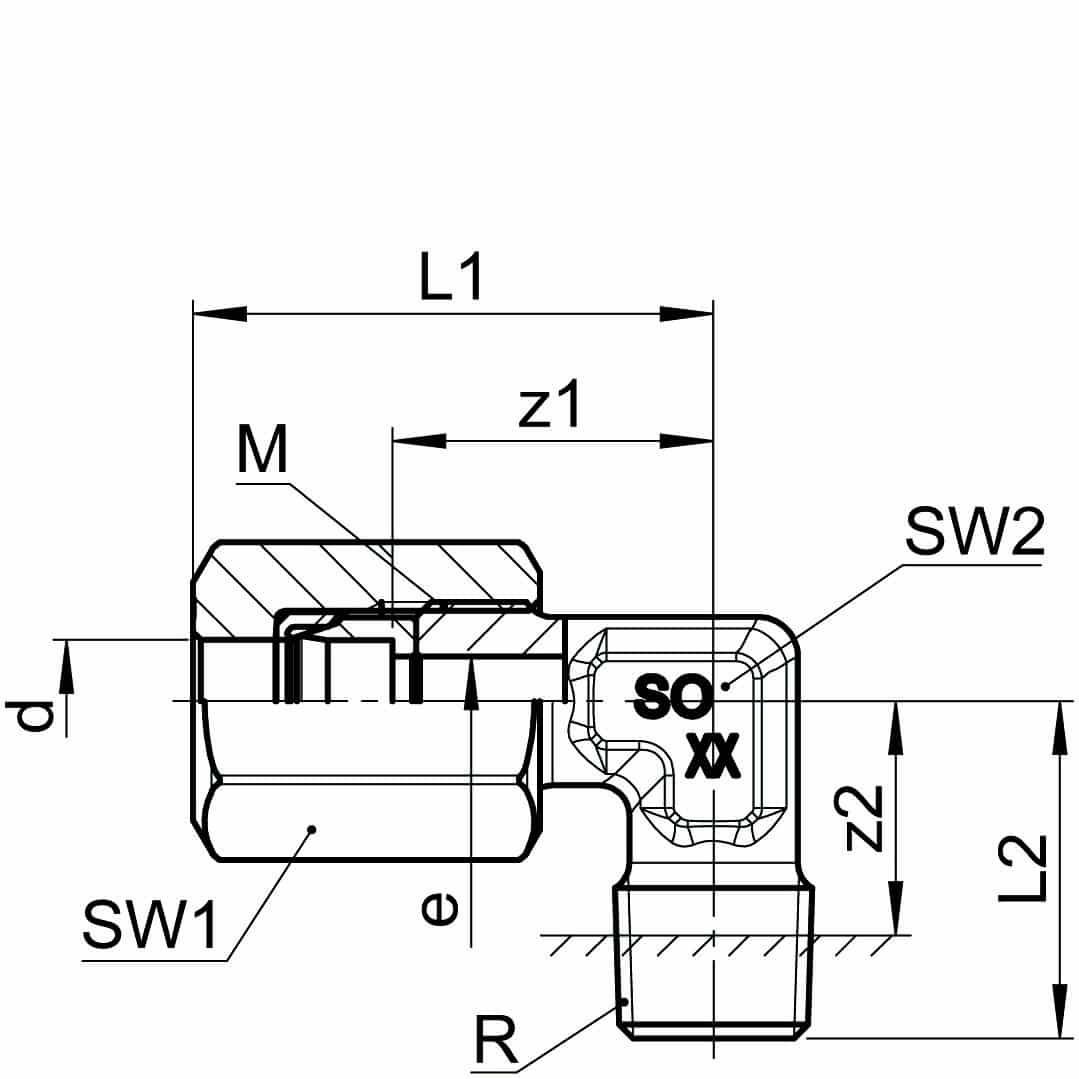

| Artikel nummer | VVS-nummer | d | R | bar | M | SW1 | SW2 | L1 | L2 | z1/z2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0782401100 | 6 | 1/8 | 400 | 10x1 | 14 | 9 | 26 | 17.5 | 16/13,5 | 4.5 | ||
| 0782401110 | 6 | 1/4 | 400 | 10x1 | 14 | 10 | 28 | 22.5 | 18/18,5 | 4.5 | ||
| 0782401160 | 8 | 1/8 | 330 | 12x1 | 17 | 10 | 28.5 | 18 | 18/14 | 6 | ||
| 0782401170 | 8 | 1/4 | 330 | 12x1 | 17 | 10 | 28.5 | 22.5 | 18/18,5 | 6.5 | ||
| 0782401180 | 8 | 3/8 | 330 | 12x1 | 17 | 14 | 32.5 | 26 | 22/19,5 | 6.5 | ||
| 0782401270 | 10 | 1/4 | 330 | 14x1 | 19 | 12 | 33 | 25 | 20,5/19 | 8.5 | ||
| 0782401380 | 12 | 1/4 | 330 | 16x1 | 22 | 14 | 35 | 25.5 | 21,5/19 | 8.5 | ||
| 0782401390 | 12 | 3/8 | 330 | 16x1 | 22 | 14 | 35 | 26 | 21,5/19,5 | 10 | ||
| 0782401534 | 15 | 1/2 | 250 | 20x1,5 | 27 | 17 | 39 | 29.5 | 24/21,5 | 13 | ||
| 0782401135 | 6.35 | 1/8 | 400 | 10x1 | 14 | 9 | 25 | 17.5 | 16/13,5 | 4.5 | ||
| 0782401140 | 6.35 | 1/4 | 400 | 10x1 | 14 | 10 | 27 | 22.5 | 18/18,5 | 4.5 | ||
| 0782401230 | 9.52 | 1/4 | 330 | 14x1 | 19 | 12 | 33.5 | 25 | 20,5/19 | 8 | ||
| 0782401434 | 12.7 | 1/2 | 250 | 20x1,5 | 27 | 17 | 39.5 | 29.5 | 24/21,5 | 11 |
