Vis alle mål +

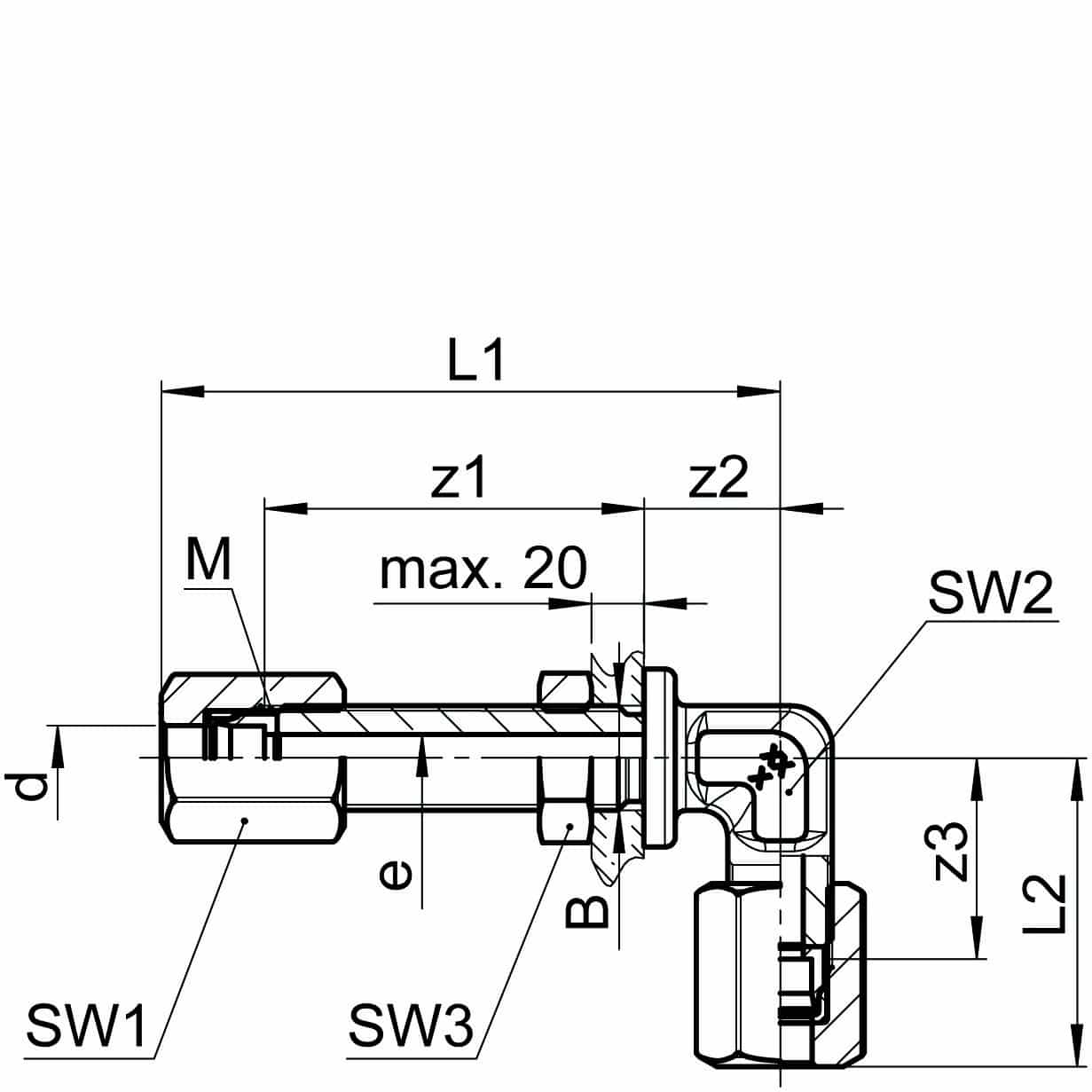

| Artikel nummer | VVS-nummer | d | bar | M | SW1/SW2 | SW3 | e | L1/L2 | B | z1/z2 | z3 | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0782700060 | 6 | 400 | 10x1 | 14/12 | 14 | 4.5 | 59/29 | 10.5 | 36/13 | 19 | ||
| 0782700080 | 8 | 330 | 12x1 | 17/12 | 17 | 5.5 | 59,5/29,5 | 12.5 | 36/13 | 19 | ||
| 0782700100 | 10 | 330 | 14x1 | 19/12 | 19 | 7.5 | 65,5/35,5 | 14.5 | 36/17 | 23 | ||
| 0782700120 | 12 | 330 | 16x1 | 22/14 | 22 | 8.5 | 67/37 | 16.5 | 37/17 | 24 | ||
| 0782700150 | 15 | 250 | 20x1,5 | 27/19 | 27 | 13 | 78/44 | 20.5 | 40/23 | 29 | ||
| 0782700160 | 16 | 250 | 24x1,5 | 30/24 | 30 | 14 | 83/52 | 24.5 | 42,5/22 | 33 | ||
| 0782700180 | 18 | 200 | 24x1,5 | 30/24 | 30 | 15 | 81/50 | 24.5 | 42,5/22 | 33.5 | ||
| 0782700063 | 6.35 | 400 | 10x1 | 14/12 | 14 | 4.5 | 60/30 | 10.5 | 36/13 | 19 | ||
| 0782700095 | 9.52 | 330 | 14x1 | 19/12 | 19 | 7.5 | 66/36 | 14.5 | 36/17 | 23 | ||
| 0782700127 | 12.7 | 250 | 20x1,5 | 27/19 | 27 | 11 | 78,5/44,5 | 20.5 | 40,5/23 | 29.5 |
