TRELP11

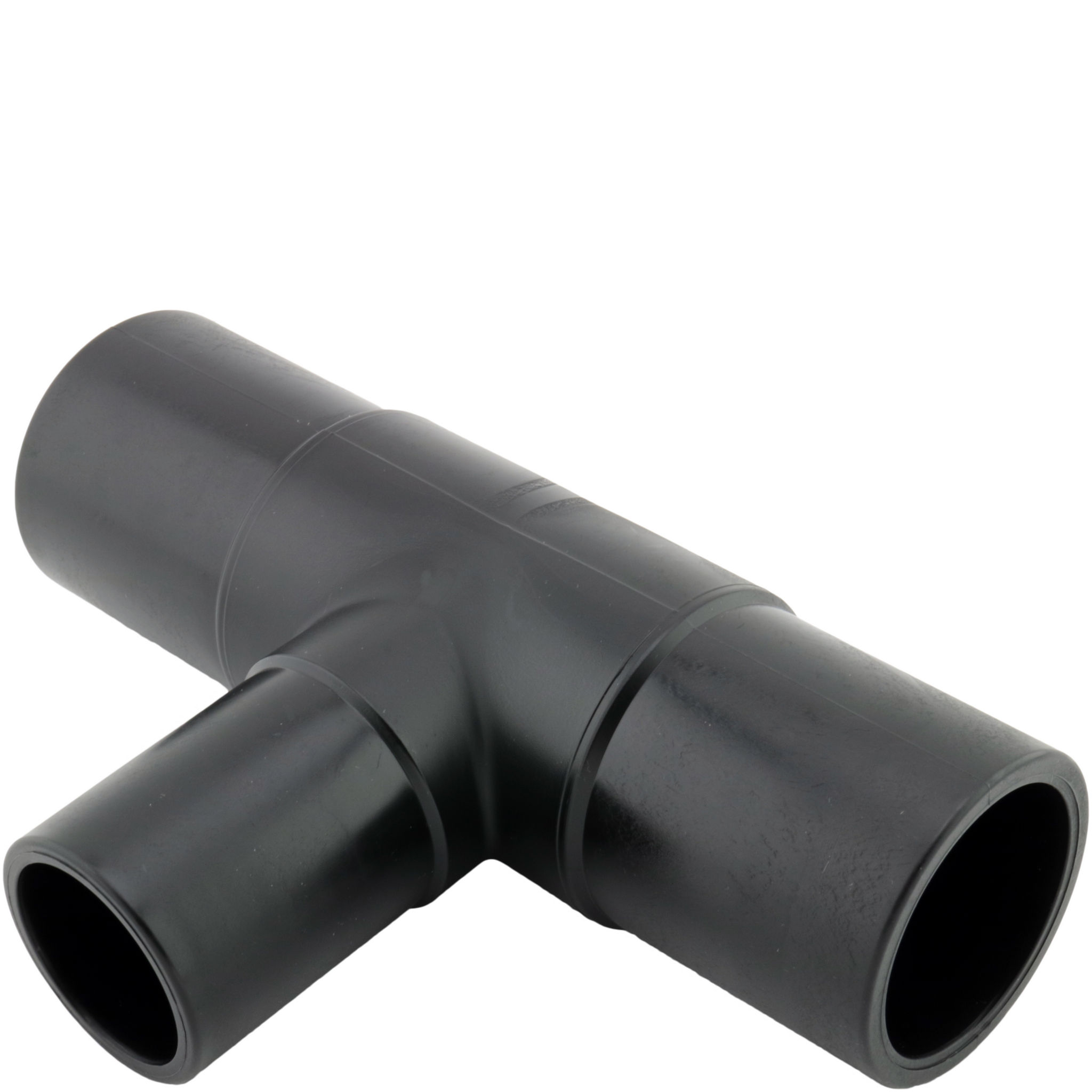

PE100 T-stykke reduceret SDR11 PN16

Vis alle mål +

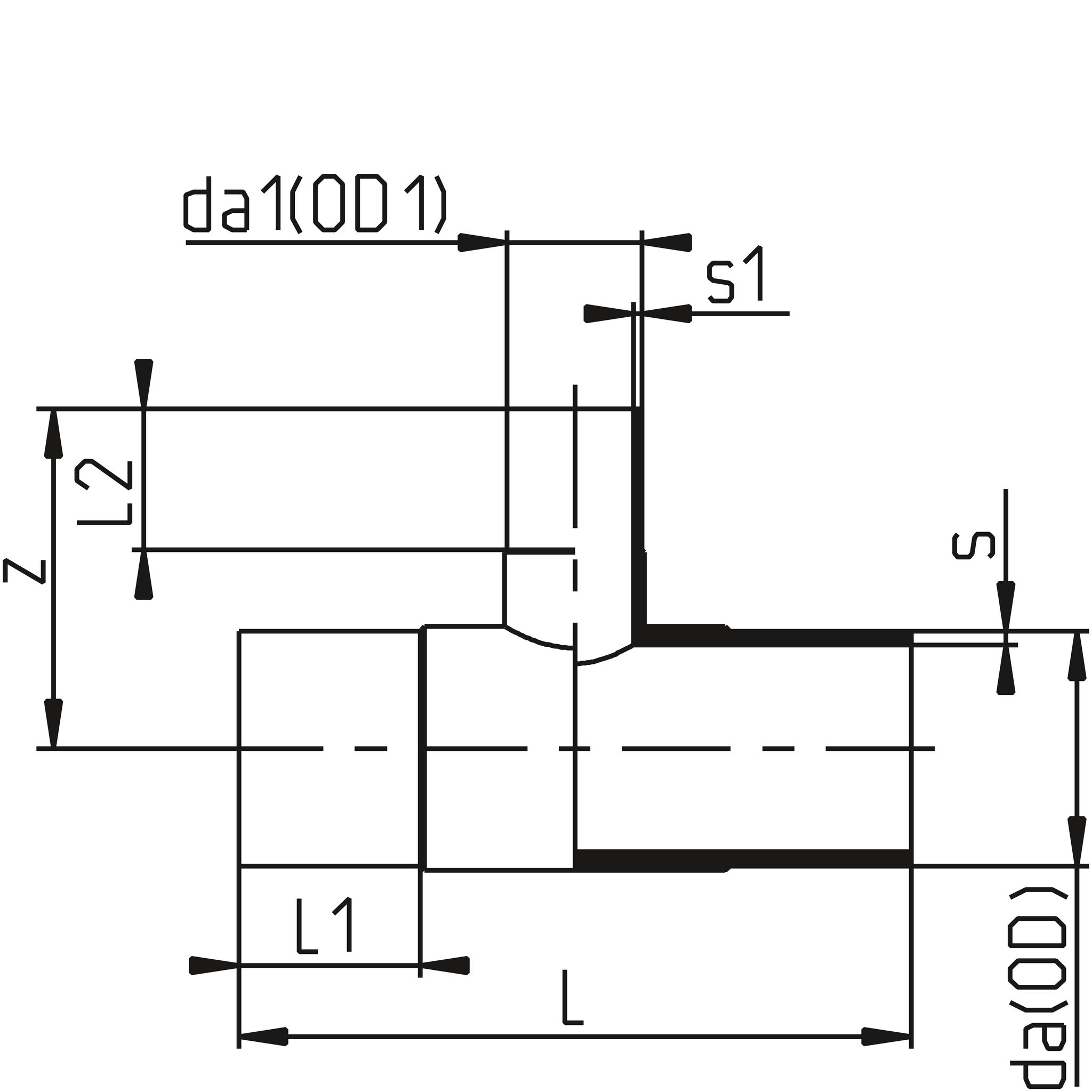

Artikel nummer	da*da1	SDR	s	s1	L	L1
TRELP11-355-110	355x110	SDR11	32.2	10	690	180
TRELP11-355-160	355x160	SDR11	32.2	14.6	685	180
TRELP11-355-225	355x225	SDR11	32.2	20.5	674	174
TRELP11-355-250	355x250	SDR11	32.2	22.7	685	175
TRELP11-400-110	400x110	SDR11	36.3	10	755	190
TRELP11-400-160	400x160	SDR11	36.3	14.6	755	190
TRELP11-400-225	400x225	SDR11	36.3	20.5	755	190
TRELP11-450-160	450x160	SDR11	40.9	14.6	676	197
TRELP11-450-225	450x225	SDR11	40.9	14.6	765	198
TRELP11-450-315	450x315	SDR11	40.9	28.6	887	198
TRELP11-500-160	500x160	SDR11	45.4	14.6	710	215
TRELP11-500-250	500x250	SDR11	45.4	22.7	815	220
TRELP11-560-250	560x250	SDR11	50.8	22.7	960	240
TRELP11-630-160	630x160	SDR11	57.2	14.6	800	255
TRELP11-630-250	630x250	SDR11	57.2	22.7	875	255

Datablad
