TRELP17

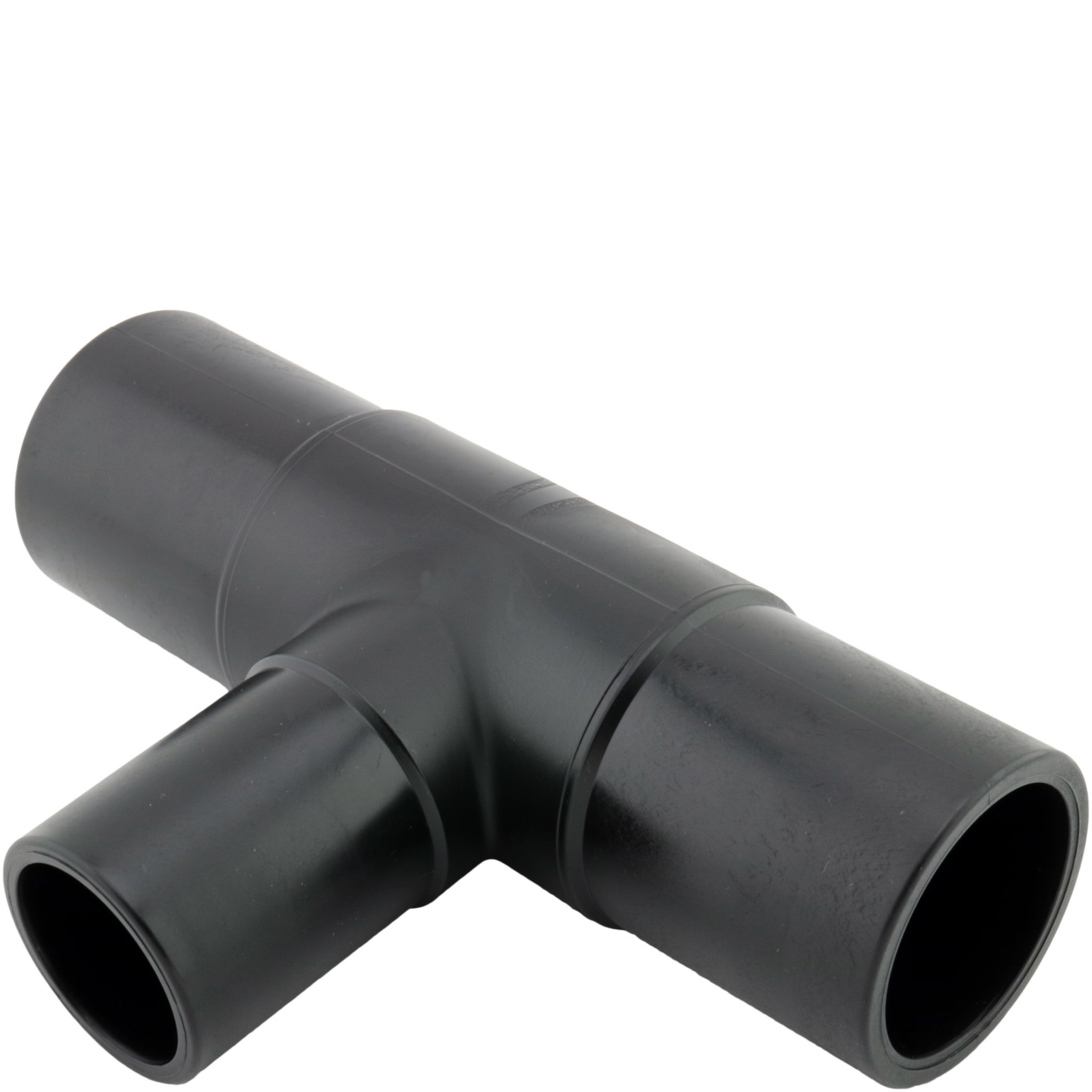

PE100 T-stykke reduceret SDR17 PN10

Vis alle mål +

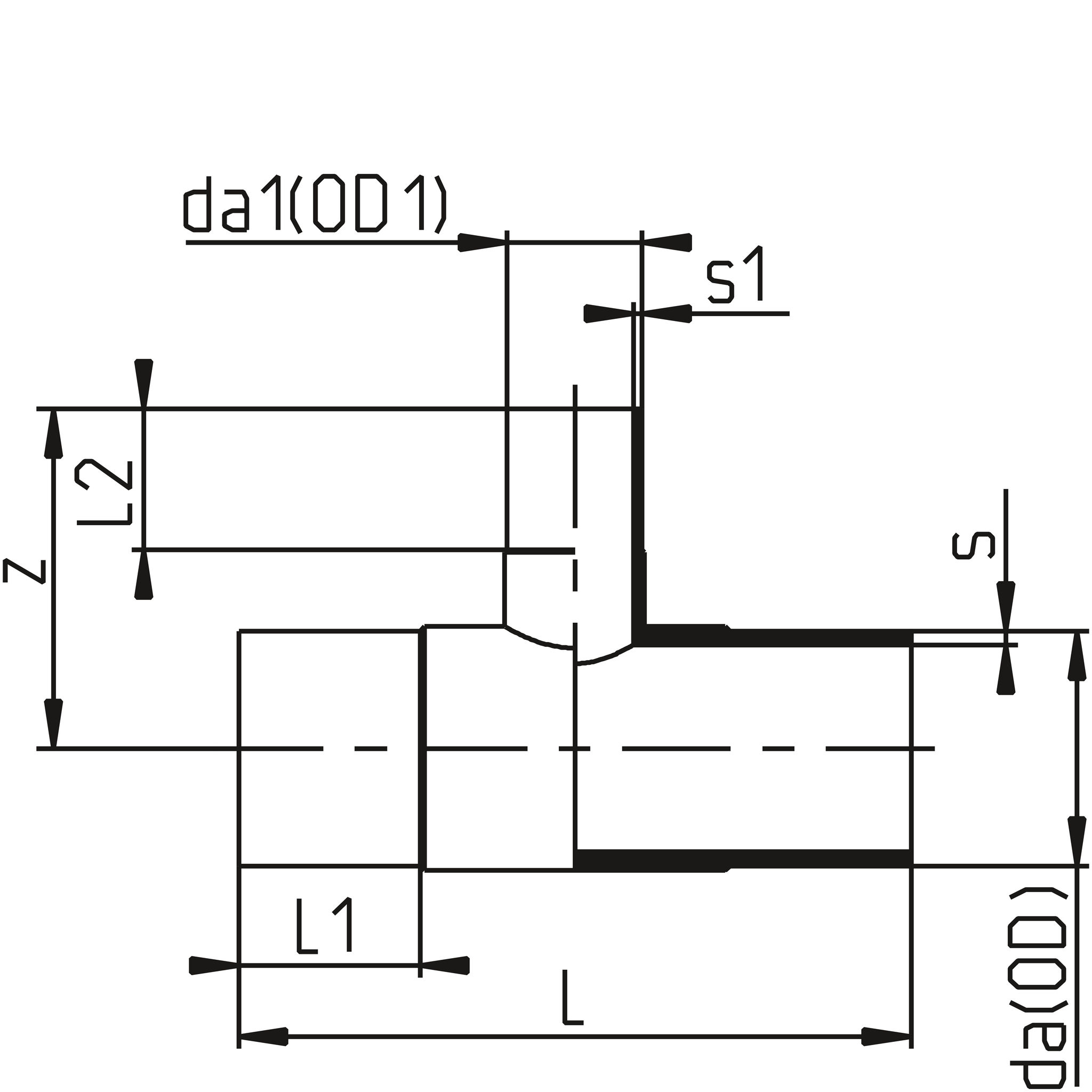

Artikel nummer	da*da1	SDR	s	s1	L	L1
TRELP17-355-110	355x110	SDR17	21.1	6.6	690	180
TRELP17-355-225	355x225	SDR17	21.1	13.4	674	174
TRELP17-355-250	355x250	SDR17	21.1	14.8	685	175
TRELP17-400-110	400x110	SDR17	23.7	6.6	755	190
TRELP17-400-160	400x160	SDR17	23.7	9.5	755	190
TRELP17-400-225	400x225	SDR17	23.7	13.4	755	190
TRELP17-450-160	450x160	SDR17	26.7	9.5	676	197
TRELP17-450-225	450x225	SDR17	26.7	13.4	765	198
TRELP17-450-315	450x315	SDR17	26.7	18.7	887	198
TRELP17-500-160	500x160	SDR17	29.7	9.5	710	215
TRELP17-500-250	500x250	SDR17	29.7	14.8	815	220
TRELP17-560-250	560x250	SDR17	33.2	14.8	960	240
TRELP17-630-160	630x160	SDR17	37.4	9.5	800	255
TRELP17-630-250	630x250	SDR17	37.4	14.8	875	255

Datablad
